c++如何使用tinyxml構建基本的SVG圖形
本篇內容主要講解“c++如何使用tinyxml構建基本的SVG圖形”，感興趣的朋友不妨來看看。本文介紹的方法操作簡單快捷，實用性強。下面就讓小編來帶大家學習“c++如何使用tinyxml構建基本的SVG圖形”吧!
成都創新互聯專注于中大型企業的成都網站設計、網站制作和網站改版、網站營銷服務，追求商業策劃與數據分析、創意藝術與技術開發的融合，累計客戶近千家，服務滿意度達97%。幫助廣大客戶順利對接上互聯網浪潮，準確優選出符合自己需要的互聯網運用，我們將一直專注成都品牌網站建設和互聯網程序開發，在前進的路上，與客戶一起成長！

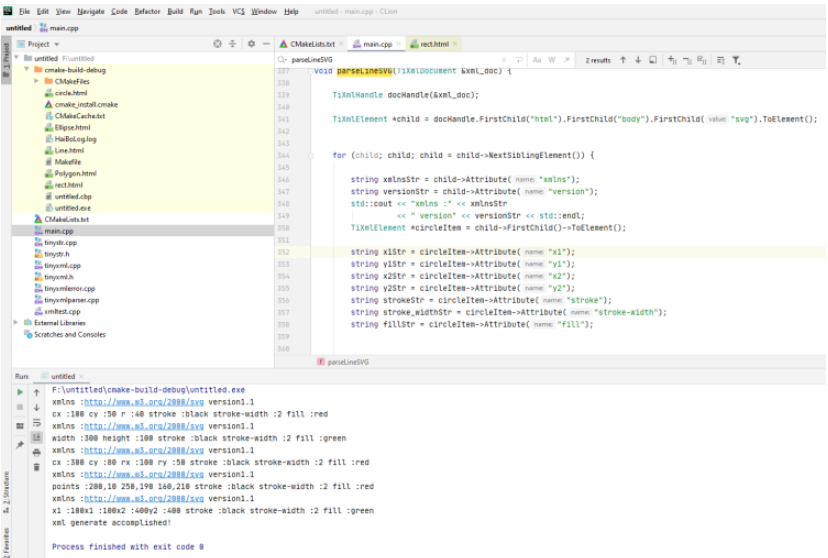

Clion的目錄
CMakelists.txt
cmake_minimum_required(VERSION 3.16)
project(untitled)
set(CMAKE_CXX_STANDARD 14)
include_directories(${CMAKE_SOURCE_DIR})
add_executable(untitled main.cpp tinystr.cpp tinyxml.cpp tinyxmlparser.cpp tinyxmlerror.cpp )代碼
#include <iostream>
#include<string>
#include "tinyxml.h"
using namespace std;
void createCircleSVG(TiXmlDocument &xml_doc) {
// 添加XML聲明
xml_doc.LinkEndChild(new TiXmlDeclaration("1.0", "GBK", ""));
// 添加根元素
TiXmlElement *xml_html = new TiXmlElement("html");
xml_doc.LinkEndChild(xml_html);
// 嵌套子元素
TiXmlElement *xml_body = new TiXmlElement("body");
xml_html->LinkEndChild(xml_body);
TiXmlElement *xml_h2 = new TiXmlElement("h2");
xml_h2->LinkEndChild(new TiXmlText("My first SVG"));
xml_body->LinkEndChild(xml_h2);
TiXmlElement *xml_circle = new TiXmlElement("circle");
xml_circle->SetAttribute("cx", "100");
xml_circle->SetAttribute("cy", "50");
xml_circle->SetAttribute("r", "40");
xml_circle->SetAttribute("stroke", "black");
xml_circle->SetAttribute("stroke-width", "2");
xml_circle->SetAttribute("fill", "red");
TiXmlElement *xml_svg = new TiXmlElement("svg");
xml_svg->SetAttribute("xmlns", "http://www.w3.org/2000/svg");
xml_svg->SetAttribute("version", "1.1");
xml_svg->LinkEndChild(xml_circle);
xml_body->LinkEndChild(xml_svg);
}
void createEllipseSVG(TiXmlDocument &xml_doc) {
// 添加XML聲明
xml_doc.LinkEndChild(new TiXmlDeclaration("1.0", "GBK", ""));
// 添加根元素
TiXmlElement *xml_html = new TiXmlElement("html");
xml_doc.LinkEndChild(xml_html);
// 嵌套子元素
TiXmlElement *xml_body = new TiXmlElement("body");
xml_html->LinkEndChild(xml_body);
TiXmlElement *xml_h2 = new TiXmlElement("h2");
xml_h2->LinkEndChild(new TiXmlText("My first SVG"));
xml_body->LinkEndChild(xml_h2);
TiXmlElement *xml_ellipse = new TiXmlElement("ellipse");
xml_ellipse->SetAttribute("cx", "300");
xml_ellipse->SetAttribute("cy", "80");
xml_ellipse->SetAttribute("rx", "100");
xml_ellipse->SetAttribute("ry", "50");
xml_ellipse->SetAttribute("stroke", "black");
xml_ellipse->SetAttribute("stroke-width", "2");
xml_ellipse->SetAttribute("fill", "red");
TiXmlElement *xml_svg = new TiXmlElement("svg");
xml_svg->SetAttribute("xmlns", "http://www.w3.org/2000/svg");
xml_svg->SetAttribute("version", "1.1");
xml_svg->LinkEndChild(xml_ellipse);
xml_body->LinkEndChild(xml_svg);
}
void createRectSVG(TiXmlDocument &xml_doc) {
// 添加XML聲明
xml_doc.LinkEndChild(new TiXmlDeclaration("1.0", "GBK", ""));
// 添加根元素
TiXmlElement *xml_html = new TiXmlElement("html");
xml_doc.LinkEndChild(xml_html);
// 嵌套子元素
TiXmlElement *xml_body = new TiXmlElement("body");
xml_html->LinkEndChild(xml_body);
TiXmlElement *xml_h2 = new TiXmlElement("h2");
xml_h2->LinkEndChild(new TiXmlText("My first SVG"));
xml_body->LinkEndChild(xml_h2);
TiXmlElement *xml_rect = new TiXmlElement("rect");
xml_rect->SetAttribute("width", "300");
xml_rect->SetAttribute("height", "100");
xml_rect->SetAttribute("stroke", "black");
xml_rect->SetAttribute("stroke-width", "2");
xml_rect->SetAttribute("fill", "green");
TiXmlElement *xml_svg = new TiXmlElement("svg");
xml_svg->SetAttribute("xmlns", "http://www.w3.org/2000/svg");
xml_svg->SetAttribute("version", "1.1");
xml_svg->LinkEndChild(xml_rect);
xml_body->LinkEndChild(xml_svg);
}
void createPolygonSVG(TiXmlDocument &xml_doc) {
// 添加XML聲明
xml_doc.LinkEndChild(new TiXmlDeclaration("1.0", "GBK", ""));
// 添加根元素
TiXmlElement *xml_html = new TiXmlElement("html");
xml_doc.LinkEndChild(xml_html);
// 嵌套子元素
TiXmlElement *xml_body = new TiXmlElement("body");
xml_html->LinkEndChild(xml_body);
TiXmlElement *xml_h2 = new TiXmlElement("h2");
xml_h2->LinkEndChild(new TiXmlText("My first SVG"));
xml_body->LinkEndChild(xml_h2);
TiXmlElement *xml_polygon = new TiXmlElement("polygon");
xml_polygon->SetAttribute("points", "200,10 250,190 160,210");
xml_polygon->SetAttribute("stroke", "black");
xml_polygon->SetAttribute("stroke-width", "2");
xml_polygon->SetAttribute("fill", "red");
TiXmlElement *xml_svg = new TiXmlElement("svg");
xml_svg->SetAttribute("xmlns", "http://www.w3.org/2000/svg");
xml_svg->SetAttribute("version", "1.1");
xml_svg->LinkEndChild(xml_polygon);
xml_body->LinkEndChild(xml_svg);
}
void createLineSVG(TiXmlDocument &xml_doc) {
// 添加XML聲明
xml_doc.LinkEndChild(new TiXmlDeclaration("1.0", "GBK", ""));
// 添加根元素
TiXmlElement *xml_html = new TiXmlElement("html");
xml_doc.LinkEndChild(xml_html);
// 嵌套子元素
TiXmlElement *xml_body = new TiXmlElement("body");
xml_html->LinkEndChild(xml_body);
TiXmlElement *xml_h2 = new TiXmlElement("h2");
xml_h2->LinkEndChild(new TiXmlText("My first SVG"));
xml_body->LinkEndChild(xml_h2);
TiXmlElement *xml_line = new TiXmlElement("line");
xml_line->SetAttribute("x1", "100");
xml_line->SetAttribute("y1", "100");
xml_line->SetAttribute("x2", "400");
xml_line->SetAttribute("y2", "400");
xml_line->SetAttribute("stroke", "black");
xml_line->SetAttribute("stroke-width", "2");
xml_line->SetAttribute("fill", "green");
TiXmlElement *xml_svg = new TiXmlElement("svg");
xml_svg->SetAttribute("xmlns", "http://www.w3.org/2000/svg");
xml_svg->SetAttribute("version", "1.1");
xml_svg->LinkEndChild(xml_line);
xml_body->LinkEndChild(xml_svg);
}
void parseCircleSVG(TiXmlDocument &xml_doc) {
TiXmlHandle docHandle(&xml_doc);
TiXmlElement *child = docHandle.FirstChild("html").FirstChild("body").FirstChild("svg").ToElement();
for (child; child; child = child->NextSiblingElement()) {
string xmlnsStr = child->Attribute("xmlns");
string versionStr = child->Attribute("version");
std::cout << "xmlns :" << xmlnsStr
<< " version" << versionStr << std::endl;
TiXmlElement *circleItem = child->FirstChild()->ToElement();
string cxStr = circleItem->Attribute("cx");
string cyStr = circleItem->Attribute("cy");
string rStr = circleItem->Attribute("r");
string strokeStr = circleItem->Attribute("stroke");
string stroke_widthStr = circleItem->Attribute("stroke-width");
string fillStr = circleItem->Attribute("fill");
std::cout << " cx :" << cxStr
<< " cy :" << cyStr
<< " r :" << rStr
<< " stroke :" << strokeStr
<< " stroke-width :" << stroke_widthStr
<< " fill :" << fillStr << std::endl;
}
}
void parseRectSVG(TiXmlDocument &xml_doc) {
TiXmlHandle docHandle(&xml_doc);
TiXmlElement *child = docHandle.FirstChild("html").FirstChild("body").FirstChild("svg").ToElement();
for (child; child; child = child->NextSiblingElement()) {
string xmlnsStr = child->Attribute("xmlns");
string versionStr = child->Attribute("version");
std::cout << "xmlns :" << xmlnsStr
<< " version" << versionStr << std::endl;
TiXmlElement *circleItem = child->FirstChild()->ToElement();
string widthStr = circleItem->Attribute("width");
string heightStr = circleItem->Attribute("height");
string strokeStr = circleItem->Attribute("stroke");
string stroke_widthStr = circleItem->Attribute("stroke-width");
string fillStr = circleItem->Attribute("fill");
std::cout << " width :" << widthStr
<< " height :" << heightStr
<< " stroke :" << strokeStr
<< " stroke-width :" << stroke_widthStr
<< " fill :" << fillStr << std::endl;
}
}
void parseEllipseSVG(TiXmlDocument &xml_doc) {
TiXmlHandle docHandle(&xml_doc);
TiXmlElement *child = docHandle.FirstChild("html").FirstChild("body").FirstChild("svg").ToElement();
for (child; child; child = child->NextSiblingElement()) {
string xmlnsStr = child->Attribute("xmlns");
string versionStr = child->Attribute("version");
std::cout << "xmlns :" << xmlnsStr
<< " version" << versionStr << std::endl;
TiXmlElement *circleItem = child->FirstChild()->ToElement();
string cxStr = circleItem->Attribute("cx");
string cyStr = circleItem->Attribute("cy");
string rxStr = circleItem->Attribute("rx");
string ryStr = circleItem->Attribute("ry");
string strokeStr = circleItem->Attribute("stroke");
string stroke_widthStr = circleItem->Attribute("stroke-width");
string fillStr = circleItem->Attribute("fill");
std::cout << " cx :" << cxStr
<< " cy :" << cyStr
<< " rx :" << rxStr
<< " ry :" << ryStr
<< " stroke :" << strokeStr
<< " stroke-width :" << stroke_widthStr
<< " fill :" << fillStr << std::endl;
}
}
void parsePolygonSVG(TiXmlDocument &xml_doc) {
TiXmlHandle docHandle(&xml_doc);
TiXmlElement *child = docHandle.FirstChild("html").FirstChild("body").FirstChild("svg").ToElement();
for (child; child; child = child->NextSiblingElement()) {
string xmlnsStr = child->Attribute("xmlns");
string versionStr = child->Attribute("version");
std::cout << "xmlns :" << xmlnsStr
<< " version" << versionStr << std::endl;
TiXmlElement *circleItem = child->FirstChild()->ToElement();
string pointsStr = circleItem->Attribute("points");
string strokeStr = circleItem->Attribute("stroke");
string stroke_widthStr = circleItem->Attribute("stroke-width");
string fillStr = circleItem->Attribute("fill");
std::cout << " points :" << pointsStr
<< " stroke :" << strokeStr
<< " stroke-width :" << stroke_widthStr
<< " fill :" << fillStr << std::endl;
}
}
void parseLineSVG(TiXmlDocument &xml_doc) {
TiXmlHandle docHandle(&xml_doc);
TiXmlElement *child = docHandle.FirstChild("html").FirstChild("body").FirstChild("svg").ToElement();
for (child; child; child = child->NextSiblingElement()) {
string xmlnsStr = child->Attribute("xmlns");
string versionStr = child->Attribute("version");
std::cout << "xmlns :" << xmlnsStr
<< " version" << versionStr << std::endl;
TiXmlElement *circleItem = child->FirstChild()->ToElement();
string x1Str = circleItem->Attribute("x1");
string y1Str = circleItem->Attribute("y1");
string x2Str = circleItem->Attribute("x2");
string y2Str = circleItem->Attribute("y2");
string strokeStr = circleItem->Attribute("stroke");
string stroke_widthStr = circleItem->Attribute("stroke-width");
string fillStr = circleItem->Attribute("fill");
std::cout << " x1 :" << x1Str
<< " y1 :" << y1Str
<< " x2 :" << x2Str
<< " y2 :" << y2Str
<< " stroke :" << strokeStr
<< " stroke-width :" << stroke_widthStr
<< " fill :" << fillStr << std::endl;
}
}
void constructCircle() {
TiXmlDocument xml_doc_Circle;
std::string exampleCircle = "circle.html"; // 可以改成xml后綴
createCircleSVG(xml_doc_Circle);
xml_doc_Circle.SaveFile(exampleCircle.c_str());
// if(!xml_doc.LoadFile(example.c_str()))
// {
// cerr << xml_doc.ErrorDesc() << endl;
// return -1;
// }
// 也可以讀取文件 進行解析
parseCircleSVG(xml_doc_Circle);
}
void constructRect() {
TiXmlDocument xml_doc_Rect;
std::string exampleRect = "rect.html"; // 可以改成xml后綴
createRectSVG(xml_doc_Rect);
// 保存到文件
xml_doc_Rect.SaveFile(exampleRect.c_str());
parseRectSVG(xml_doc_Rect);
}
void constructEllipse() {
TiXmlDocument xml_doc_Ellipse;
std::string exampleEllipse = "Ellipse.html"; // 可以改成xml后綴
createEllipseSVG(xml_doc_Ellipse);
xml_doc_Ellipse.SaveFile(exampleEllipse.c_str());
parseEllipseSVG(xml_doc_Ellipse);
}
void constructPolygon() {
TiXmlDocument xml_doc_Polygon;
std::string examplePolygon = "Polygon.html"; // 可以改成xml后綴
createPolygonSVG(xml_doc_Polygon);
xml_doc_Polygon.SaveFile(examplePolygon.c_str());
parsePolygonSVG(xml_doc_Polygon);
}
void constructLine() {
TiXmlDocument xml_doc_Line;
std::string exampleLine = "Line.html"; // 可以改成xml后綴
createLineSVG(xml_doc_Line);
xml_doc_Line.SaveFile(exampleLine.c_str());
parseLineSVG(xml_doc_Line);
}
int main() {
constructCircle();
constructRect();
constructEllipse();
constructPolygon();
constructLine();
std::cout << "xml generate accomplished!\n";
return 0;
}測試結果
F:\untitled\cmake-build-debug\untitled.exe xmlns :http://www.w3.org/2000/svg version1.1 cx :100 cy :50 r :40 stroke :black stroke-width :2 fill :red xmlns :http://www.w3.org/2000/svg version1.1 width :300 height :100 stroke :black stroke-width :2 fill :green xmlns :http://www.w3.org/2000/svg version1.1 cx :300 cy :80 rx :100 ry :50 stroke :black stroke-width :2 fill :red xmlns :http://www.w3.org/2000/svg version1.1 points :200,10 250,190 160,210 stroke :black stroke-width :2 fill :red xmlns :http://www.w3.org/2000/svg version1.1 x1 :100 y1 :100 x2 :400 y2 :400 stroke :black stroke-width :2 fill :green xml generate accomplished! Process finished with exit code 0
到此，相信大家對“c++如何使用tinyxml構建基本的SVG圖形”有了更深的了解，不妨來實際操作一番吧！這里是創新互聯網站，更多相關內容可以進入相關頻道進行查詢，關注我們，繼續學習！
文章題目：c++如何使用tinyxml構建基本的SVG圖形
網址分享：http://chinadenli.net/article48/gghjep.html
成都網站建設公司_創新互聯，為您提供網站維護、網站設計、網站策劃、外貿建站、域名注冊、微信公眾號
聲明：本網站發布的內容（圖片、視頻和文字）以用戶投稿、用戶轉載內容為主，如果涉及侵權請盡快告知，我們將會在第一時間刪除。文章觀點不代表本網站立場，如需處理請聯系客服。電話：028-86922220；郵箱：631063699@qq.com。內容未經允許不得轉載，或轉載時需注明來源： 創新互聯
- 如何做好機械行業類網站設計工作？ 2022-02-27
- 洛陽網站設計制作：設計網站工作主要都有哪些主要內容呢？ 2021-09-15
- 沈陽網站設計一般都有哪些步驟？ 2023-01-25
- 浙江網站設計-浙江外貿網站建設設計制作方案 2021-10-26
- 網站設計規范：該做什么，不該做什么 2015-04-22
- 成都網站設計風格定位的重要性 2016-10-30
- 談談用戶體驗設計中的“分步導航” 2016-09-07
- 外貿網站設計之“關于我們”頁面 怎么更專業 2016-01-22
- 上海網站建設公司、上海網站設計公司推出的“自助式”服務 2020-11-04
- 網站設計策劃方向包括哪些 2021-05-07
- 網站設計讓人過目不忘留住游客才是王道 2021-12-03
- 在網站設計怎樣可以有效改善用戶體驗？ 2023-01-02
