需求：各個部門使用無線的用戶，只能連接到部門所屬的VLAN。

創新互聯建站始終堅持【策劃先行，效果至上】的經營理念，通過多達十年累計超上千家客戶的網站建設總結了一套系統有效的全網營銷推廣解決方案，現已廣泛運用于各行各業的客戶，其中包括：花箱等企業，備受客戶稱贊。

環境：

網絡設備 ：核心交換H3C S5500（192.168.10.254），接入層POE H3C S5130（192.168.10.253）， AC為H3C WX2560H（192.168.10.252），AP為WA4320；

服務器：域/DHCP服務器（192.168.20.1），NPS服務器(192.168.20.2)

VLAN分為10、20、30、40、50、60，其中10為網絡設備網段，20為Windows服務器網段，30為AP網段，40\50\60為用戶所屬生產網段；10\20\30由核心交換機分配地址，40\50\60由核心交換中繼到Windows DHCP服務器進行分配IP地址。

一、交換機配置：

核心交換S5500：

<S5500>dis?cur #??version?7.1.045,?Release?3116 #??sysname?S5500 #??clock?timezone?Lisbon?add?00:00:00??clock?protocol?none #??telnet?server?enable #??irf?mac-address?persistent?timer??irf?auto-update?enable??undo?irf?link-delay??irf?member?1?priority?1 #??dhcp?enable??dhcp?server?forbidden-ip?192.168.10.1?192.168.10.10??dhcp?server?forbidden-ip?192.168.20.1?192.168.20.10 #??lldp?global?enable #??password-recovery?enable # vlan?1??????????# vlan?10 # vlan?20 # vlan?30 # vlan?40 # vlan?50 # vlan?60 #10??stp?global?enable # dhcp?server?ip-pool?10??gateway-list?192.168.10.254??network?192.168.10.0?mask?255.255.255.0??dns-list?192.168.20.1 # dhcp?server?ip-pool?20??gateway-list?192.168.20.254??network?192.168.20.0?mask?255.255.255.0??dns-list?192.168.20.1 # dhcp?server?ip-pool?30??????????????gateway-list?192.168.30.254??network?192.168.30.0?mask?255.255.255.0??dns-list?192.168.20.1??option?43?hex?8007000001c0a80afc????????????#AP網段為30，AC網段為10，AP跨網段注冊時在DHCP上要配置optin43選項，即AC的16進制地址 # interface?NULL0 # interface?Vlan-interface1??ip?address?192.168.0.233?255.255.255.0 # interface?Vlan-interface10??ip?address?192.168.10.254?255.255.255.0 # interface?Vlan-interface20??ip?address?192.168.20.254?255.255.255.0 # interface?Vlan-interface30??ip?address?192.168.30.254?255.255.255.0 # interface?Vlan-interface40??ip?address?192.168.40.254?255.255.255.0??dhcp?select?relay??dhcp?relay?server-address?192.168.20.1 # interface?Vlan-interface50??ip?address?192.168.50.254?255.255.255.0??dhcp?select?relay??dhcp?relay?server-address?192.168.20.1 # interface?Vlan-interface60??ip?address?192.168.60.254?255.255.255.0??dhcp?select?relay??dhcp?relay?server-address?192.168.20.1 # interface?GigabitEthernet1/0/1 # interface?GigabitEthernet1/0/2 # interface?GigabitEthernet1/0/3 # interface?GigabitEthernet1/0/4 # interface?GigabitEthernet1/0/5 # interface?GigabitEthernet1/0/6 # interface?GigabitEthernet1/0/7 # interface?GigabitEthernet1/0/8 # interface?GigabitEthernet1/0/9 # interface?GigabitEthernet1/0/10 # interface?GigabitEthernet1/0/11 # interface?GigabitEthernet1/0/12 # interface?GigabitEthernet1/0/13 # interface?GigabitEthernet1/0/14 # interface?GigabitEthernet1/0/15 # interface?GigabitEthernet1/0/16 #???????????????interface?GigabitEthernet1/0/17 #下聯S5130??port?link-type?trunk??port?trunk?permit?vlan?all??combo?enable?copper # interface?GigabitEthernet1/0/18 #下聯AC?WX2560H??port?link-type?trunk??port?trunk?permit?vlan?all??combo?enable?copper # interface?GigabitEthernet1/0/19??combo?enable?copper # interface?GigabitEthernet1/0/20??combo?enable?copper # interface?GigabitEthernet1/0/21??combo?enable?copper # interface?GigabitEthernet1/0/22??combo?enable?copper # interface?GigabitEthernet1/0/23??port?access?vlan?10??combo?enable?copper # interface?GigabitEthernet1/0/24??port?access?vlan?20??combo?enable?copper # interface?GigabitEthernet1/0/25 # interface?GigabitEthernet1/0/26 # interface?GigabitEthernet1/0/27 # interface?GigabitEthernet1/0/28 #??scheduler?logfile?size?16 # line?class?aux??user-role?network-admin # line?class?vty??user-role?network-operator #???????????????line?aux?0??user-role?network-admin # line?vty?0?63??authentication-mode?scheme??user-role?network-admin??user-role?network-operator??idle-timeout?0?0 #??snmp-agent??snmp-agent?local-engineid?800063A2803CF5CC29A26100000001??snmp-agent?community?write?private??snmp-agent?community?read?public??snmp-agent?sys-info?version?all??# domain?system #??aaa?session-limit?http?6??aaa?session-limit?https?6??domain?default?enable?system # role?name?level-0??description?Predefined?level-0?role # role?name?level-1??description?Predefined?level-1?role # role?name?level-2??description?Predefined?level-2?role # role?name?level-3??description?Predefined?level-3?role # role?name?level-4??description?Predefined?level-4?role # role?name?level-5??description?Predefined?level-5?role # role?name?level-6??description?Predefined?level-6?role # role?name?level-7??description?Predefined?level-7?role # role?name?level-8??description?Predefined?level-8?role # role?name?level-9??description?Predefined?level-9?role # role?name?level-10??description?Predefined?level-10?role # role?name?level-11??description?Predefined?level-11?role # role?name?level-12??description?Predefined?level-12?role # role?name?level-13??description?Predefined?level-13?role # role?name?level-14??description?Predefined?level-14?role # user-group?system # local-user?admin?class?manage??password?hash?$h$6$m6G0XrvVo3KCxzlo$ZiSUweumlOHswdjZOF9eac28c8rKCP4001GBXyfQp444n0ETJiRF6TJJNHE9Sh+eEChM11nlVTbZ5v6c8juKyA==??service-type?telnet?terminal?http?https??authorization-attribute?user-role?network-admin??authorization-attribute?user-role?network-operator #??netconf?soap?http?enable??netconf?soap?https?enable #??ip?http?enable??ip?https?enable # return <S5500>

POE S5130：

具體配置省略，關鍵信息為： 1、開啟端口POE功能； 2、由于要配置AP自動上線，所以此交換機連接AP的端口模式均配置為access模式，VLAN為AP所屬VLAN30；

AC WX2560H:

<WX2560H>dis?cur #??version?7.1.064,?Release?5215P01 #??sysname?WX2560H #??telnet?server?enable #??dot1x #啟用dot1x,配置802.1x系統認證方位為EAP??dot1x?authentication-method?eap #??password-recovery?enable # vlan?1 # vlan?10 # vlan?20 # vlan?30 # vlan?40 # vlan?50 #???????????????wlan?service-template?1 #無線模版配置??ssid?service1??akm?mode?dot1x??cipher-suite?ccmp??security-ie?rsn??client-security?authentication-mode?dot1x??dot1x?domain?dm01??service-template?enable # interface?NULL0 # interface?Vlan-interface1??ip?address?192.168.0.100?255.255.255.0 # interface?Vlan-interface10??ip?address?192.168.10.252?255.255.255.0 # interface?GigabitEthernet1/0/7??port?link-mode?route # interface?GigabitEthernet1/0/8??port?link-mode?route #???????????????interface?GigabitEthernet1/0/1 #AC上聯端口??port?link-mode?bridge??port?link-type?trunk??port?trunk?permit?vlan?all # interface?GigabitEthernet1/0/2??port?link-mode?bridge # interface?GigabitEthernet1/0/3??port?link-mode?bridge # interface?GigabitEthernet1/0/4??port?link-mode?bridge # interface?GigabitEthernet1/0/5??port?link-mode?bridge # interface?GigabitEthernet1/0/6??port?link-mode?bridge #??scheduler?logfile?size?16 # line?class?console??user-role?network-admin # line?class?vty??user-role?network-operator # line?con?0??user-role?network-admin # line?vty?0?31??authentication-mode?scheme??user-role?network-operator #??ip?route-static?192.168.10.0?24?192.168.10.254 #靜態路由??ip?route-static?192.168.20.0?24?192.168.10.254?????????#添加靜態路由，否則驗證無法通過??ip?route-static?192.168.30.0?24?192.168.10.254?????????#添加靜態路由，否則AP無法注冊至AC #??undo?info-center?logfile?enable #??radius?session-control?enable #使能radius?session-control功能 # radius?scheme?rd01 #新建radius服務，授權及認證服務器和密鑰??primary?authentication?192.168.20.2?key?cipher?$c$3$H/oG+QiqvYDHlrCjYQtLXoWoKXbOf9mSuU1N??primary?accounting?192.168.20.2?key?cipher?$c$3$4/xA5b5wob1GLTAt+J4pxJJf8NuaSzQOiYn2??key?authentication?cipher?$c$3$bCmB/bA01ZFxZnpa1xxpBCLeIZnQ2uhhp4Ee??key?accounting?cipher?$c$3$NXsfRNwLjlhQw0YMKdmAgf2L2oQFVFGGIGpp??nas-ip?192.168.10.252 #指定Nas-ip，即AC地址 # radius?dynamic-author?server??#開啟并配置Radius?DAE??client?ip?192.168.20.2?key?cipher?$c$3$GRXfDjXnWehlelAEC7r8/UOIFw9OYwzfwvZd # domain?dm01 #新建本地isp??authentication?lan-access?radius-scheme?rd01??authorization?lan-access?radius-scheme?rd01??accounting?lan-access?radius-scheme?rd01 # domain?system #??domain?default?enable?system # role?name?level-0??description?Predefined?level-0?role # role?name?level-1??description?Predefined?level-1?role # role?name?level-2??description?Predefined?level-2?role # role?name?level-3??description?Predefined?level-3?role # role?name?level-4??description?Predefined?level-4?role # role?name?level-5??description?Predefined?level-5?role # role?name?level-6??description?Predefined?level-6?role # role?name?level-7??description?Predefined?level-7?role # role?name?level-8??description?Predefined?level-8?role # role?name?level-9??description?Predefined?level-9?role # role?name?level-10??description?Predefined?level-10?role # role?name?level-11??description?Predefined?level-11?role # role?name?level-12??description?Predefined?level-12?role # role?name?level-13??description?Predefined?level-13?role # role?name?level-14??description?Predefined?level-14?role # user-group?system # local-user?admin?class?manage??password?hash?$h$6$D5QsfpSiuEZF2/U4$8Q1ajQ+0kHYMJjx5sJESu48zPA+O9o+txSM7JQP3MJP6o4DXCQ+PeGwqXGX39NRJZX8HsGSCC1YdCZJCtzUYsg==??service-type?telnet?http?https??authorization-attribute?user-role?network-admin #??ip?http?enable??ip?https?enable #??wlan?auto-ap?enable??wlan?auto-persistent?enable # wlan?global-configuration # wlan?ap-group?default-group??vlan?1 # wlan?ap?38ad-be58-d860?model?WA4320H???serial-id?219801A0YG8178E08438??radio?1??radio?2 # wlan?ap?38ad-be58-d6a0?model?WA4320H???serial-id?219801A0YG8178E08424??radio?1???radio?enable???service-template?1??radio?2????????#??cloud-management?server?domain?oasis.h4c.com # return <WX2560H>

二、服務器配置

1、域服務器配置省略

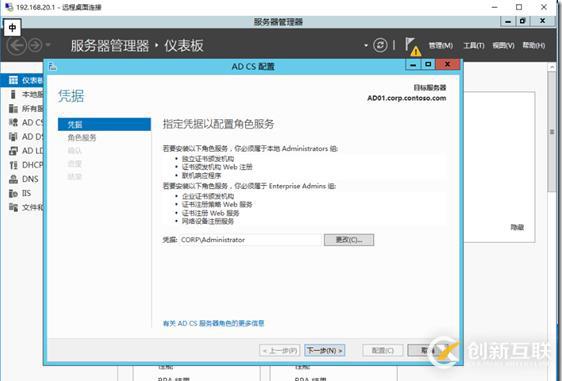

常規安裝完畢域服務器后，安裝證書服務。

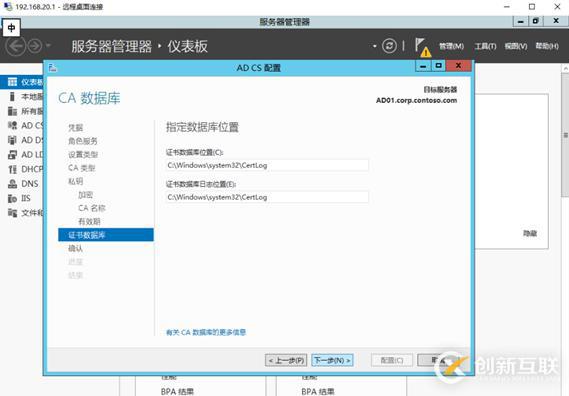

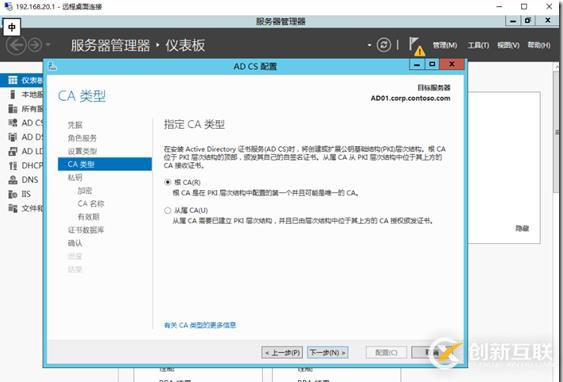

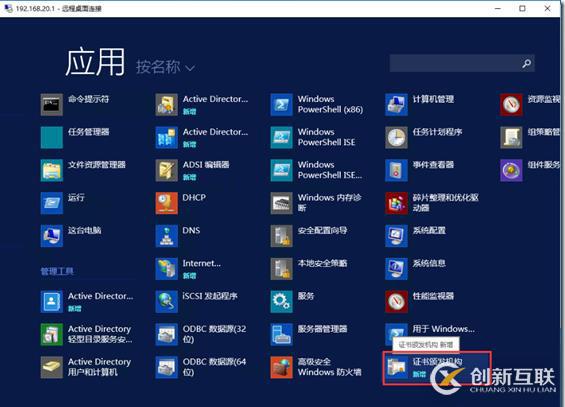

在AD服務器上配置證書服務：

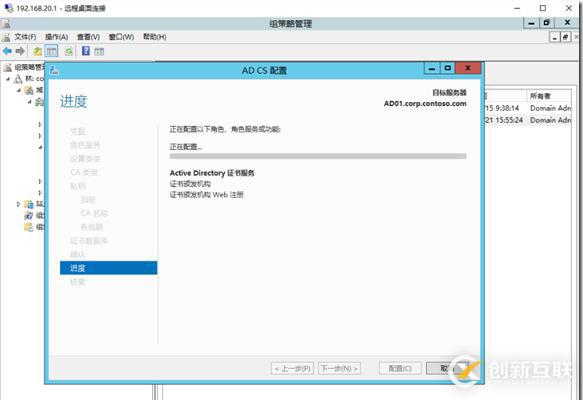

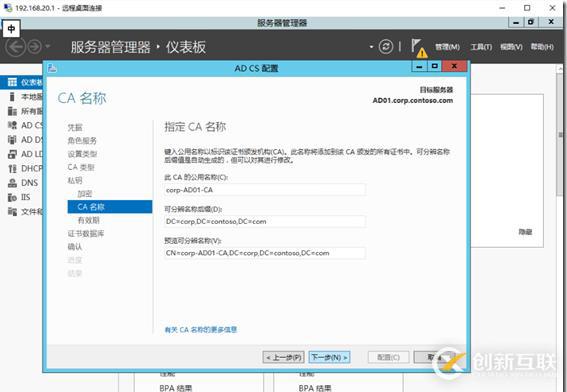

添加證書頒發幾個和證書web注冊

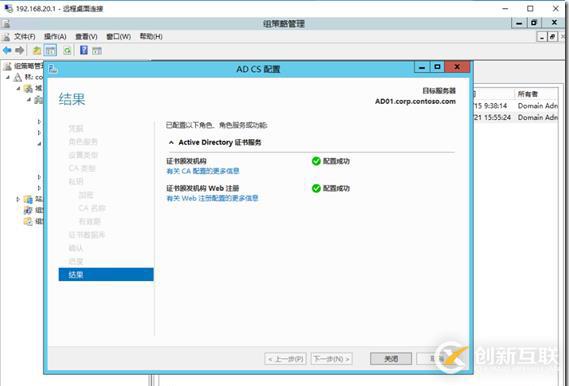

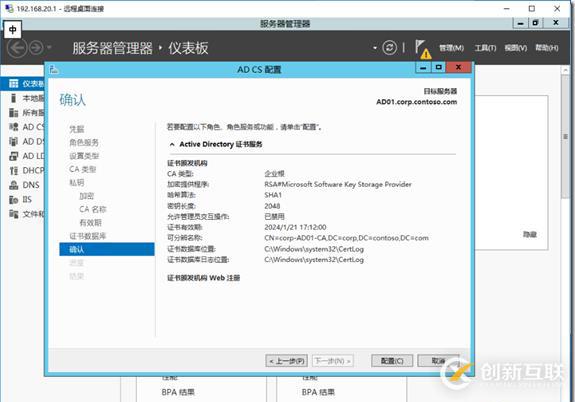

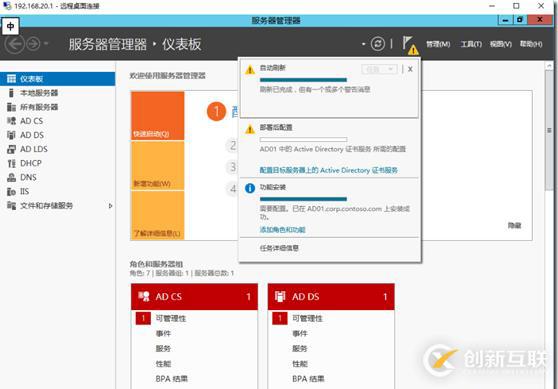

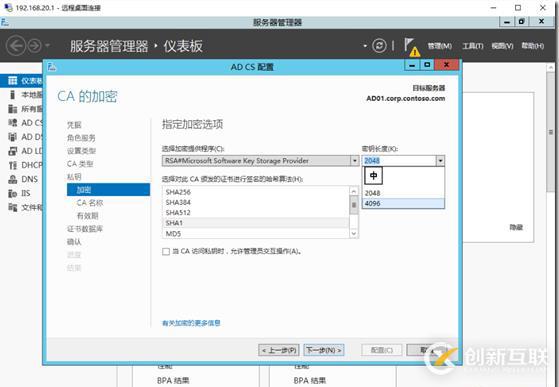

證書服務安裝成功

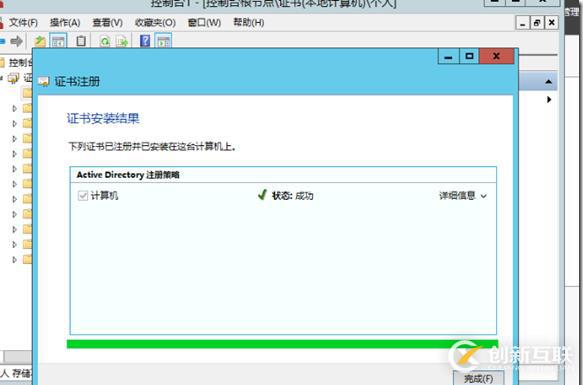

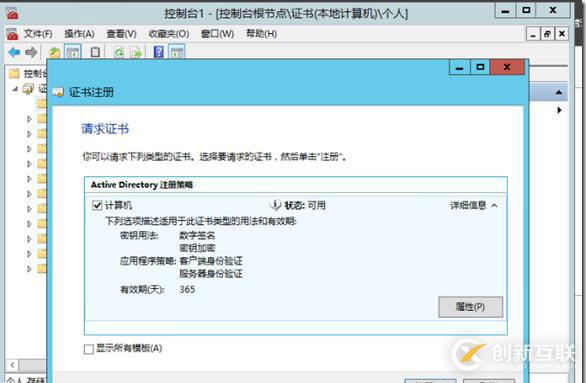

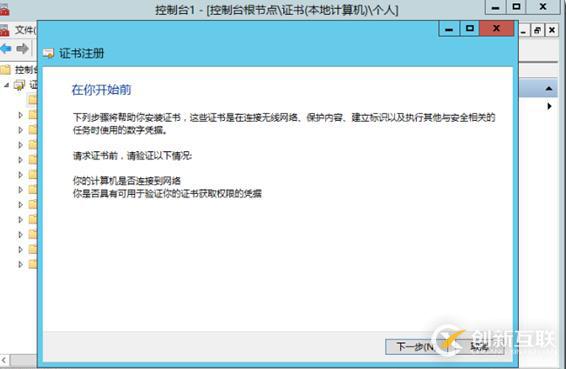

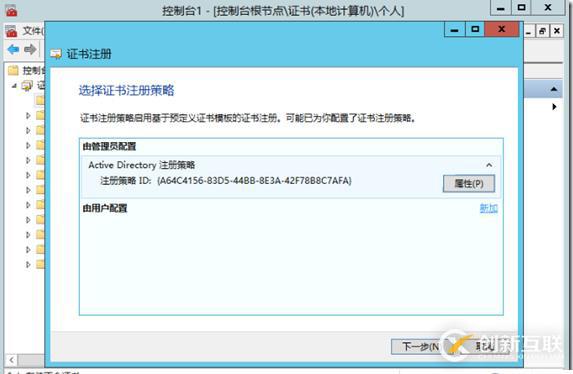

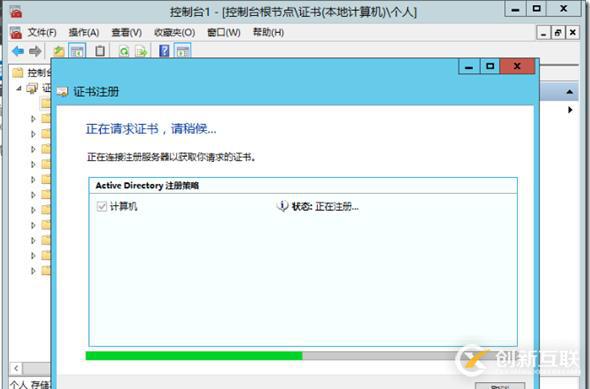

在Radius服務器上申請證書

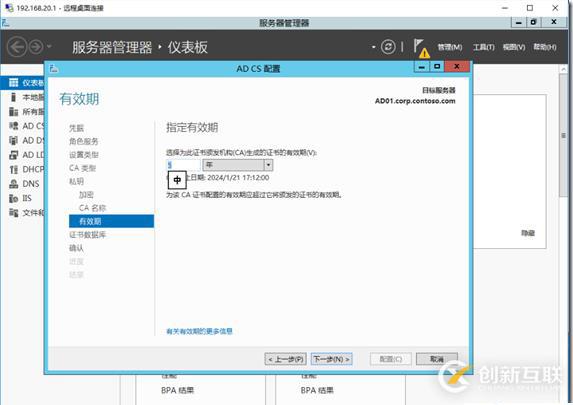

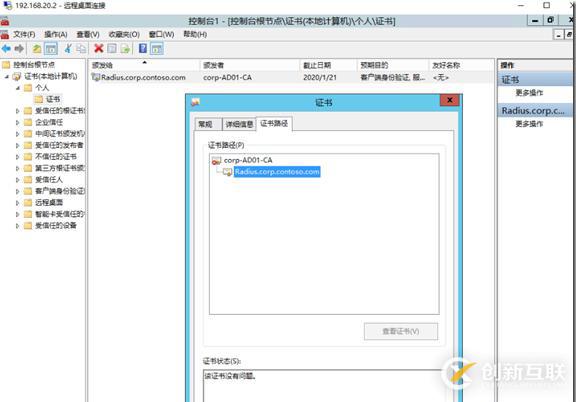

有效期為365天

2、Radius服務器配置

Radius服務器配置，分為四個部分。

2.1、新建共享模版

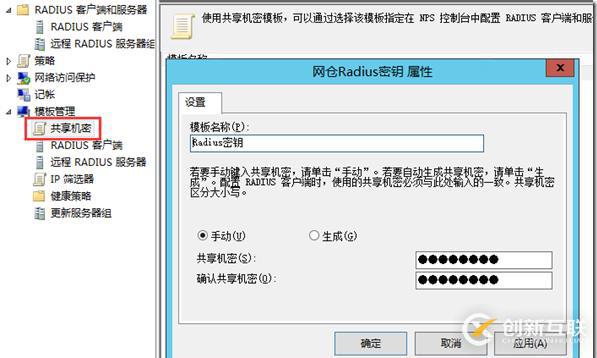

2.2、新建Radius客戶端。

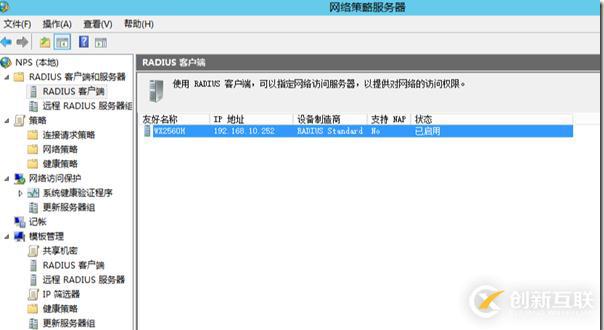

Radius客戶端通常即為AC的地址，部分品牌使用軟AC的無線AP，Radius客戶端為所有AP的IP地址（此種情況下，需要把AP的地址設置為固定IP）

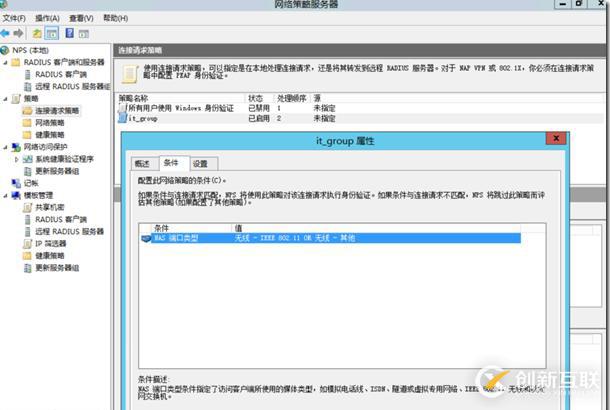

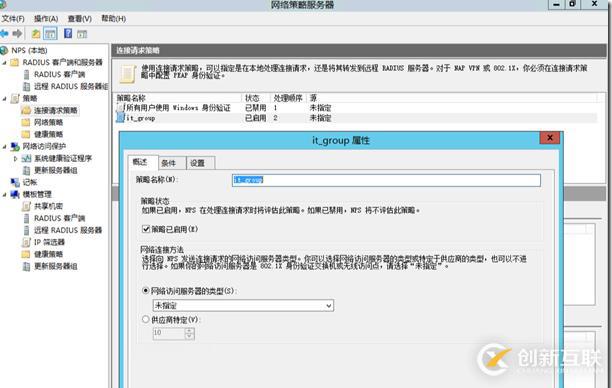

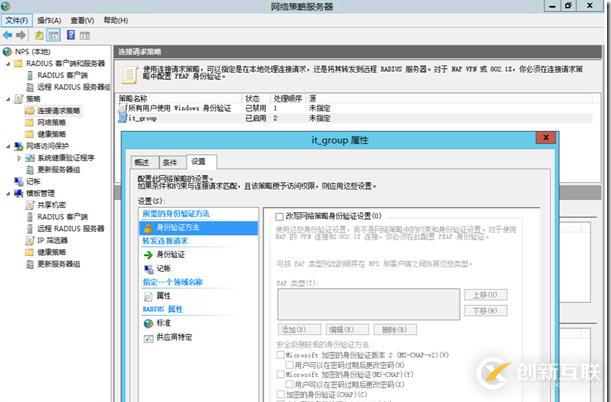

2.3、連接請求策略

連接請求策略和網絡策略互相對應的，通常情況下是一個部門（或一個VLAN）對應一條策略

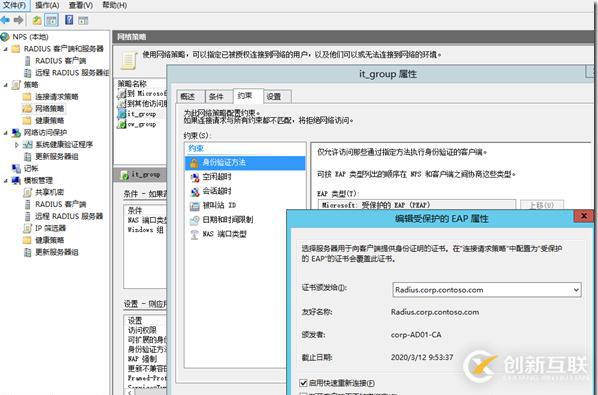

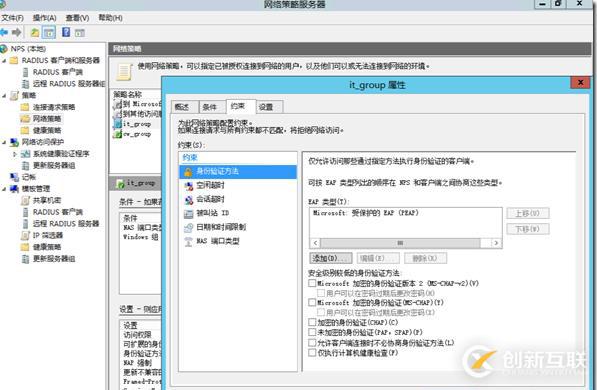

2.3、網絡策略

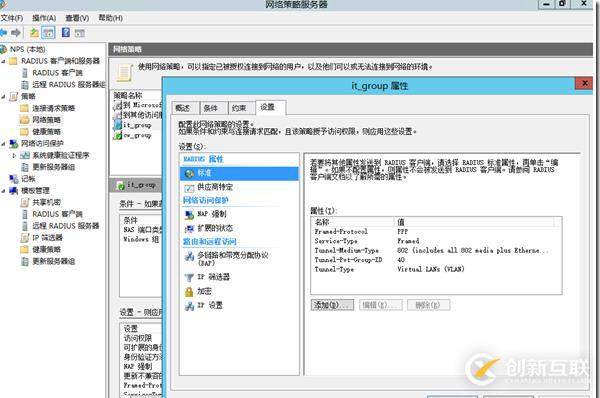

網絡策略中，主要設置以下幾個重要的參數：

對應的安全組：此條策略對應的Windows組，通常為一個部門的安全組；

身份驗證方式：EAP類型

framed-protocol：PPP

service-type :framed

tunnel-medium-type： 隧道承載媒介類型為802

tunnel-pvt-group-id：定義所屬的vlan

至此，Radius實現無線用戶動態VLAN配置完成。
