1、基本環境

JDK 1.8_171
MySQL 5.7.19
CentOS 7.4
Keepalived 1.4.0
DB1：192.168.200.180
DB2：192.168.200.181
VIP： 192.168.200.99

2、下載安裝Keepalived

2.1、keepalived下載

下載地址：wget http://www.keepalived.org/software/keepalived-1.4.0.tar.gz

2.2、keepalived安裝

2臺均按照此種方式進行安裝

yum install gcc gcc-c++ make openssl openssl-devel net-snmp-devel psmisc ipvsadm libnfnetlink-devel popt popt-devel popt-static openssl-devel kernel-devel libnl libnl-devel -y    # 安裝依賴

cd /usr/local/src
tar -zvxf keepalived-1.4.0.tar.gz    # 解壓
cd keepalived-1.4.0
./configure --prefix=/usr/local/keepalived --enable-snmp    # 編譯
make && make install    # 安裝
mkdir /etc/keepalived
cp /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/    # 拷貝配置
ln -s /usr/local/keepalived/sbin/keepalived /usr/sbin/keepalived
ln -s /usr/local/keepalived/sbin/keepalived /sbin/keepalived

2.3、Keepalived配置

DB1上面的配置：

[root@mysql01 keepalived-1.4.0]# cp /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf_bak
[root@mysql01 keepalived-1.4.0]# vim /etc/keepalived/keepalived.conf

! Configuration File for keepalived

global_defs {
   notification_email {
     nvidiacheng@163.com
   }
   notification_email_from nvidiacheng@163.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id Node_Master
}

vrrp_instance VI_1 {
    state BACKUP          # 可配置master和backup模式，為了防止腦裂現象，主備均需要設置為backup模式，master模式會搶占VIP
    interface ens33      # 網卡名
    virtual_router_id 43     # VRRP組名，兩個節點的設置必須一樣，以指明各個節點屬于同一VRRP組
    priority 100      # 權重，主節點要大于備節點
    unicast_src_ip  192.168.200.180     # 本地IP地址
    unicast_peer {
                  192.168.200.181     # 對端IP地址，此地址一定不能忘記
                 }
    nopreempt            # 配合backup,防止切換后，主庫服務恢復正常后，IP漂移過來
    advert_int 1          # 組播信息發送間隔，兩個節點設置必須一樣
    authentication {     # 設置驗證信息，兩個節點必須一致
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.200.99      # VIP地址
    }
}
virtual_server 192.168.200.99 3306 {
    delay_loop 6
    lb_algo wrr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.200.180 3306 {
      weight 1
      notify_down /etc/keepalived/mysql.sh
      TCP_CHECK {
      connect_timeout 10
      nb_get_retry 3
      delay_before_retry 3
      connect_port 3306
        }
    }
}


DB2上面配置

[root@mysql02 keepalived-1.4.0]# cp /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf_bak
[root@mysql02 keepalived-1.4.0]# vim /etc/keepalived/keepalived.conf

! Configuration File for keepalived
  global_defs {
      notification_email {
      nvidiacheng@163.com
      }
      notification_email_from nvidiacheng@163.com
      smtp_server 127.0.0.1
      smtp_connect_timeout 30
      router_id Node_backup
     }
 vrrp_instance VI_1 {
      state BACKUP
      interface ens33
      virtual_router_id 43
      priority 90
      unicast_src_ip  192.168.200.181
      unicast_peer {
                  192.168.200.180
                   }
      advert_int 1
      authentication {
      auth_type PASS
      auth_pass 1111
      }
      virtual_ipaddress {
      192.168.200.99
      }
      }
 virtual_server 192.168.200.99 3306 {
      delay_loop 2
      lb_algo wrr
      lb_kind DR
      persistence_timeout 60
      protocol TCP

      real_server 192.168.200.181 3306{
      weight 1
      notify_down /etc/keepalived/mysql.sh
      echo '3' >  /etc/keepalived/t.log
      TCP_CHECK {
      connect_timeout 10
      nb_get_retry 3
      delay_before_retry 3
      connect_port 3306
      }
      }
}

mysql.sh腳本配置內容（2臺一樣）：

[root@mysql01 keepalived]# vim /etc/keepalived/mysql.sh
#!/bin/bash
run_status=`service keepalived status|grep running|wc -l`
pro_status=`ps -ef |grep keepalived|grep -v grep |wc -l`

service keepalived stop

if [ ${run_status} != 0 ] || [ ${pro_status} != 0 ]
then
   pkill keepalived
fi

給mysql.sh賦可執行權限

[root@mysql01 keepalived]# chmod +x mysql.sh

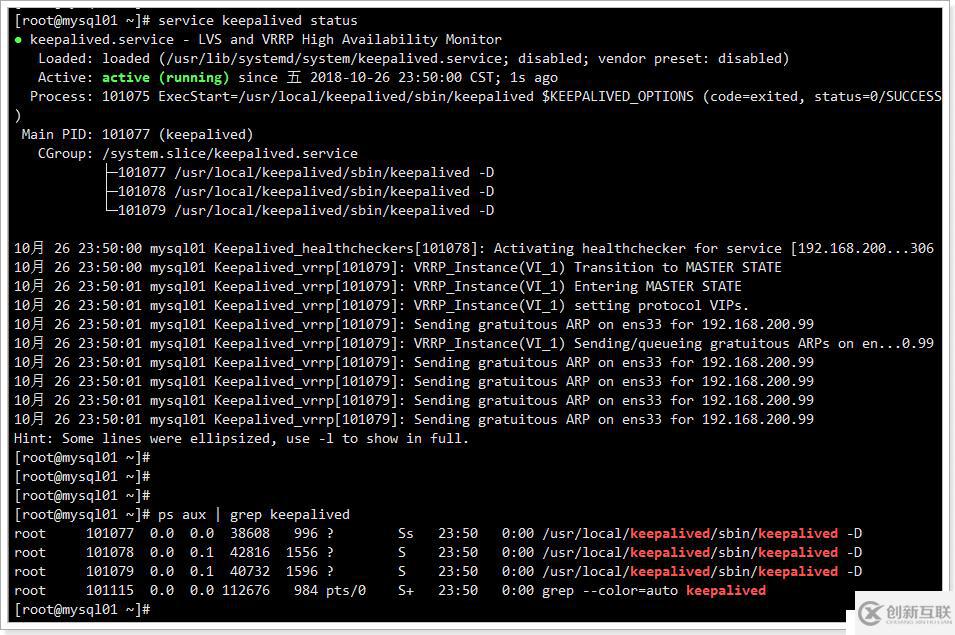

都配置好后啟動keepalived進行測試：

service keepalived start   # 啟動Keepalived
service keepalived restart   # 重啟Keepalived
service keepalived stop   # 停止Keepalived
service keepalived status   # 查看Keepalived運行狀態
ps aux | grep keepalived   # 查看Keepalived進程

3.3、測試Keepalived

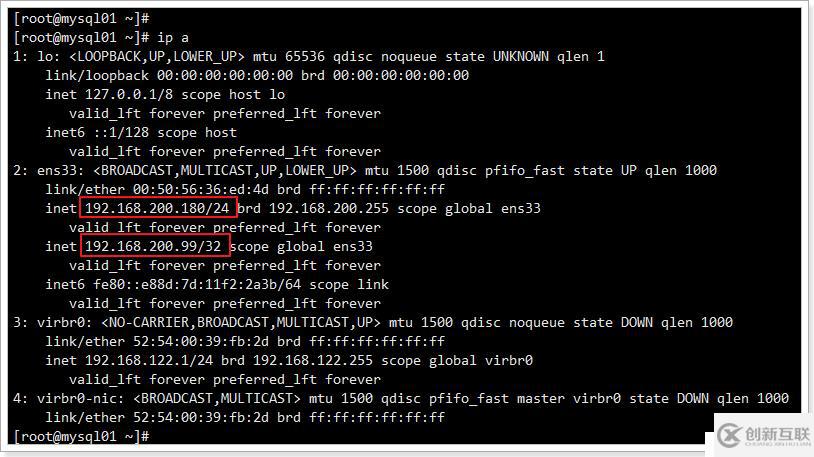

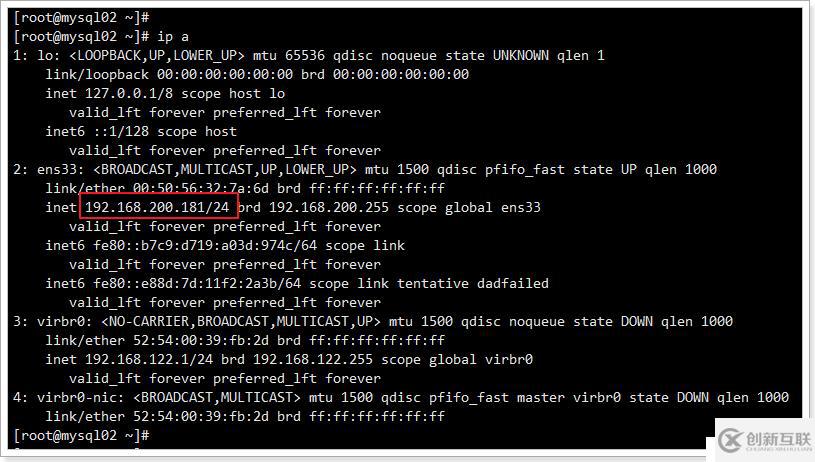

2臺均啟動Keepalived后，分別查看網卡


從上圖可以看出，VIP地址在主節點

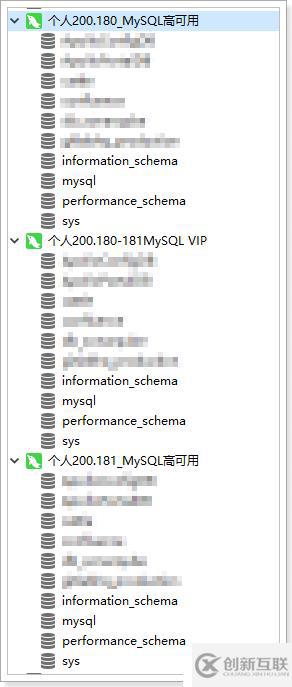

使用Navicat工具分別連接2個節點和VIP節點

這個時候我們將節點1的MySQL停止，模擬主節點數據庫故障來測試VIP是否會漂移到備節點

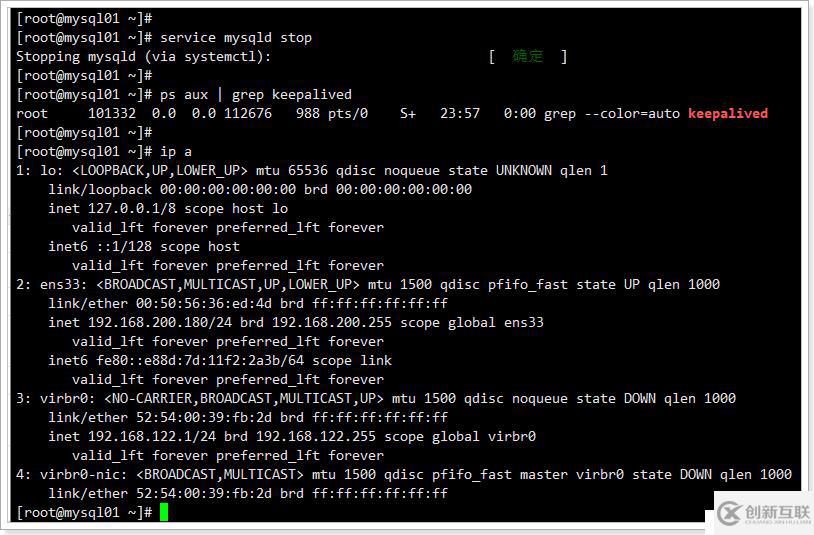

如上圖，主節點MySQL停止后，Keepalived進程也結束了，VIP地址不見了

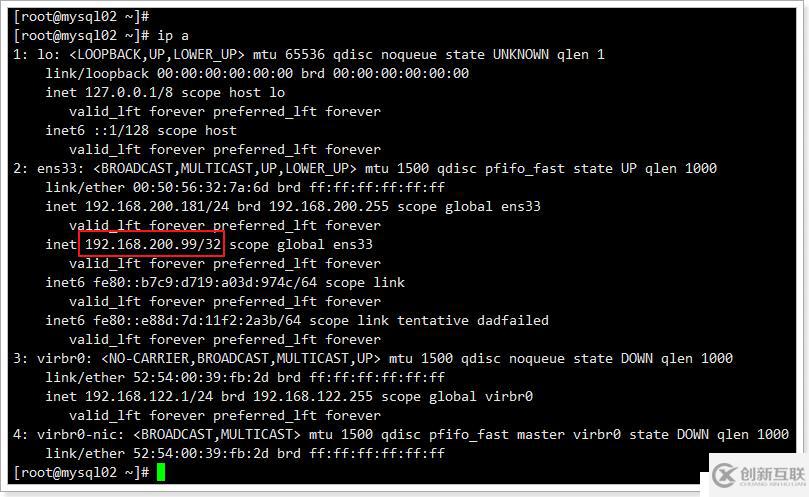

查看備節點的網卡，發現VIP已經漂移過來了

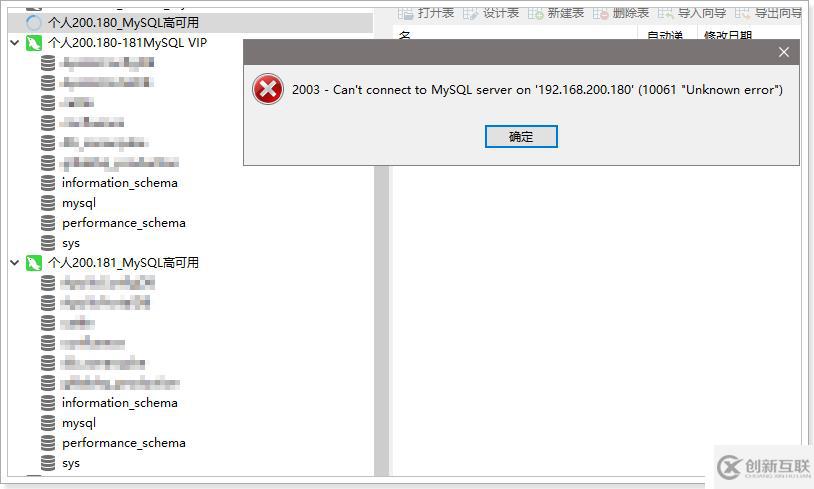

用Navicat打開VIP，可以正常訪問，主節點無法打開

重新啟動主節點MySQL服務和Keepalived服務，在停止備節點測試（略過）
