引出問題

項目使用告警系統的邏輯是將實時數據保存到本地數據庫再使用定時任務做判斷，然后產生告警數據。這種方式存在告警的延時實在是太高了。數據從產生到保存，從保存到判斷都會存在時間差，按照保存數據定時5分鐘一次，定時任務5分鐘一次。最高會產生10分鐘的誤差，這種告警就沒什么意義了。

讓客戶滿意是我們工作的目標，不斷超越客戶的期望值來自于我們對這個行業的熱愛。我們立志把好的技術通過有效、簡單的方式提供給客戶，將通過不懈努力成為客戶在信息化領域值得信任、有價值的長期合作伙伴，公司提供的服務項目有：域名注冊、虛擬主機、營銷軟件、網站建設、鹽湖網站維護、網站推廣。demo設計

為了簡單的還原業務場景，做了簡單的demo假設

實現一個對于學生成績評價的實時處理程序
數學成績，基準范圍是90-140，超出告警
物理成績，基準范圍是60-95，超出告警

環境搭建

使用windows環境演示

準備工作

1、安裝jdk

2、安裝zookeeper

解壓壓縮包

zoo_sample.cfg將它重命名為zoo.cfg

修改配置 dataDir=D://tools//apache-zookeeper-3.5.10-bin//data

配置環境變量

3、安裝kafka

解壓壓縮包

修改config/server.properties

log.dirs=D://tools//kafka_2.11-2.1.0//log

flink程序代碼

pom

org.apache.flinkflink-java1.13.0org.apache.flinkflink-streaming-java_2.121.13.0org.apache.flinkflink-clients_2.121.13.0org.apache.flinkflink-connector-kafka_2.121.13.0org.projectlomboklombok1.18.12providedcom.alibabafastjson1.2.62org.apache.flinkflink-connector-kafka_2.111.10.0

主程序

public class StreamAlertDemo {

	public static void main(String[] args) throws Exception {
		StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(3);
		Properties properties = new Properties();
		properties.setProperty(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
		FlinkKafkaConsumerkafkaConsumer = new FlinkKafkaConsumer<>("test", new SimpleStringSchema(), properties);
		DataStreamSourceinputDataStream = env.addSource(kafkaConsumer);

		DataStreamresultStream = inputDataStream.flatMap(new AlertFlatMapper());
		resultStream.print().setParallelism(4);

		resultStream.addSink(new FlinkKafkaProducer<>("demo",new SimpleStringSchema(),properties));
		env.execute();
	}

}

主程序，配置告警規則后期可以使用推送或者拉去方式獲取數據

public class RuleMap {

	private RuleMap(){}

	public final static MapinitialRuleMap;

	private static List ruleList = new ArrayList<>();

	private static ListruleStringList = new ArrayList<>(Arrays.asList(
			"{\"target\":\"MathVal\",\"type\":\"0\",\"criticalVal\":90,\"descInfo\":\"You Math score is too low\"}",
			"{\"target\":\"MathVal\",\"type\":\"2\",\"criticalVal\":140,\"descInfo\":\"You Math score is too high\"}",
			"{\"target\":\"PhysicsVal\",\"type\":\"0\",\"criticalVal\":60,\"descInfo\":\"You Physics score is too low\"}",
			"{\"target\":\"PhysicsVal\",\"type\":\"2\",\"criticalVal\":95,\"descInfo\":\"You Physics score is too high\"}"));

	static {
		for (String i : ruleStringList) {
			ruleList.add(JSON.parseObject(i, AlertRule.class));
		}
		initialRuleMap = ruleList.stream().collect(Collectors.groupingBy(AlertRule::getTarget));
	}


}

AlertFlatMapper，處理告警邏輯

public class AlertFlatMapper implements FlatMapFunction{

	@Override
	public void flatMap(String inVal, Collectorout) throws Exception {
		Achievement user = JSON.parseObject(inVal, Achievement.class);
		MapinitialRuleMap = RuleMap.initialRuleMap;
		List resList = new ArrayList<>();
		List mathRule = initialRuleMap.get("MathVal");
		for (AlertRule rule : mathRule) {
			if (checkVal(user.getMathVal(), rule.getCriticalVal(), rule.getType())) {
				resList.add(new AlertInfo(user.getName(), rule.getDescInfo()));
			}
		}
		List physicsRule = initialRuleMap.get("PhysicsVal");
		for (AlertRule rule : physicsRule) {
			if (checkVal(user.getPhysicsVal(), rule.getCriticalVal(), rule.getType())) {
				resList.add(new AlertInfo(user.getName(), rule.getDescInfo()));
			}
		}
		String result = JSON.toJSONString(resList);
		out.collect(result);
	}

	private static boolean checkVal(Integer actVal, Integer targetVal, Integer type) {
		switch (type) {
			case 0:
				return actVal< targetVal;
			case 1:
				return actVal.equals(targetVal);
			case 2:
				return actVal >targetVal;
			default:
				return false;
		}
	}
}

三個實體類

@Data
@EqualsAndHashCode(callSuper = false)
@Accessors(chain = true)
public class Achievement implements Serializable {

    private static final long serialVersionUID = -1L;

    private String name;

    private Integer mathVal;

    private Integer physicsVal;

}

@Data
@AllArgsConstructor
@EqualsAndHashCode(callSuper = false)
@Accessors(chain = true)
public class AlertInfo implements Serializable {

    private static final long serialVersionUID = -1L;

    private String name;

    private String descInfo;

}

@Data
@AllArgsConstructor
@EqualsAndHashCode(callSuper = false)
@Accessors(chain = true)
public class AlertRule implements Serializable {

	private static final long serialVersionUID = -1L;

	private String target;

	//0小于 1等于 2大于
	private Integer type;

	private Integer criticalVal;

	private String descInfo;
}

項目演示

創建kafka生產者 test
.\bin\windows\kafka-console-producer.bat --broker-list localhost:9092 --topic test

創建kafka消費者 demo
.\bin\windows\kafka-console-consumer.bat --bootstrap-server localhost:9092 --topic demo --from-beginning

啟動flink應用

給topic test發送消息

{"name":"liu","MathVal":45,"PhysicsVal":76}

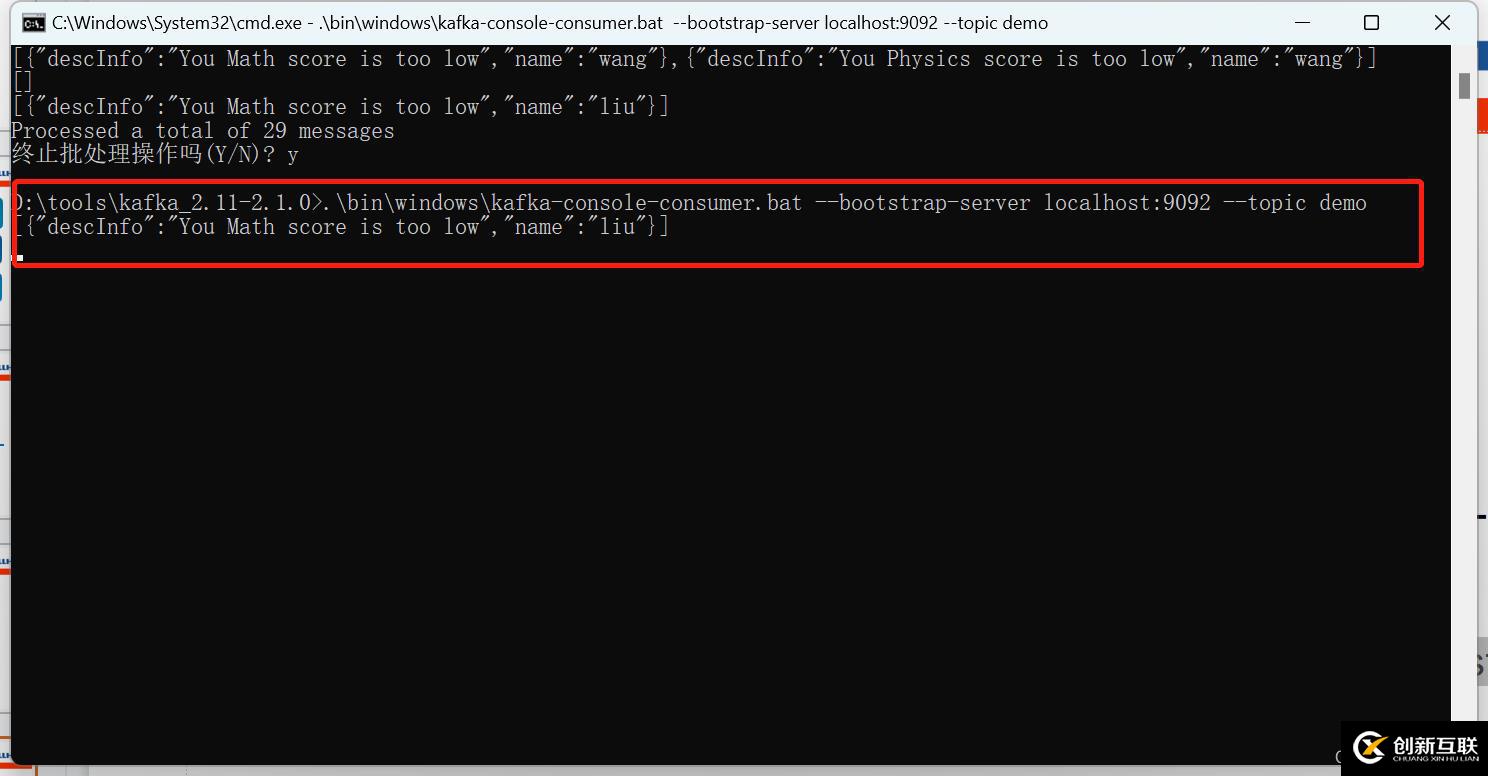

消費topic demo

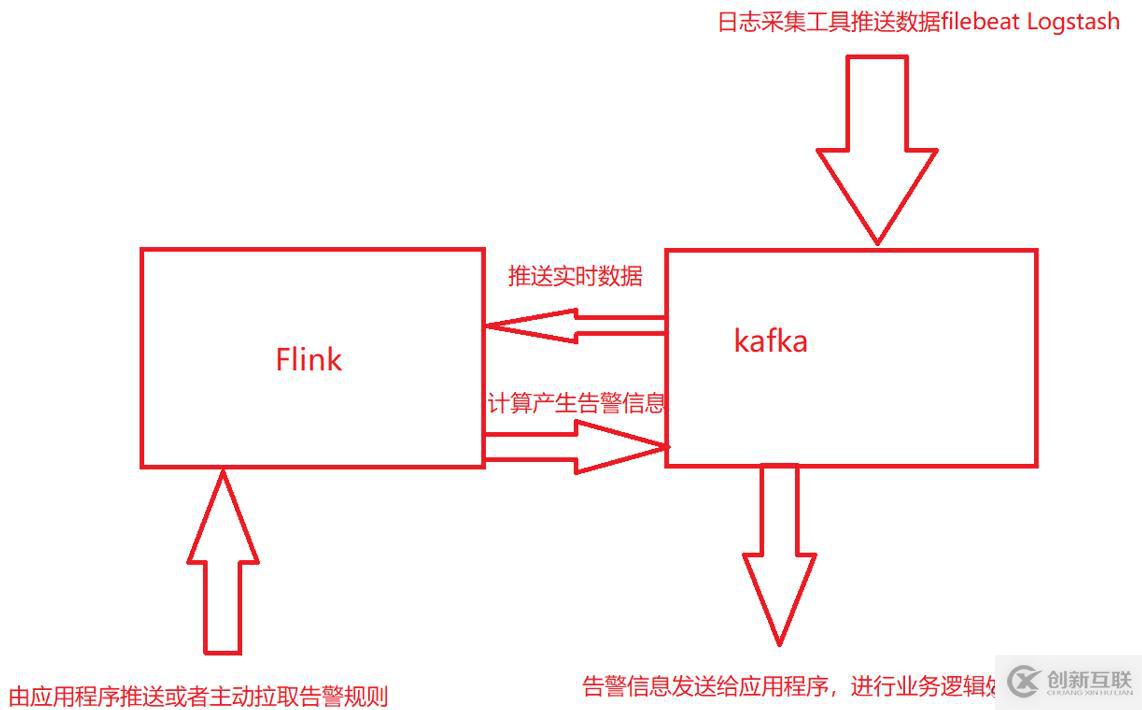

告警系統架構
