這篇文章主要講解了Springboot集成activity的用法，內容清晰明了，對此有興趣的小伙伴可以學習一下，相信大家閱讀完之后會有幫助。

成都創新互聯自2013年創立以來，是專業互聯網技術服務公司，擁有項目成都做網站、成都網站建設、成都外貿網站建設網站策劃，項目實施與項目整合能力。我們以讓每一個夢想脫穎而出為使命，1280元英吉沙做網站,已為上家服務,為英吉沙各地企業和個人服務,聯系電話:18980820575

1.第一步添加bpmn文件得插件，不然沒法查看和編輯bpmn文件，添加插件的方法各自百度即可，很簡單

Springboot集成activity的用法

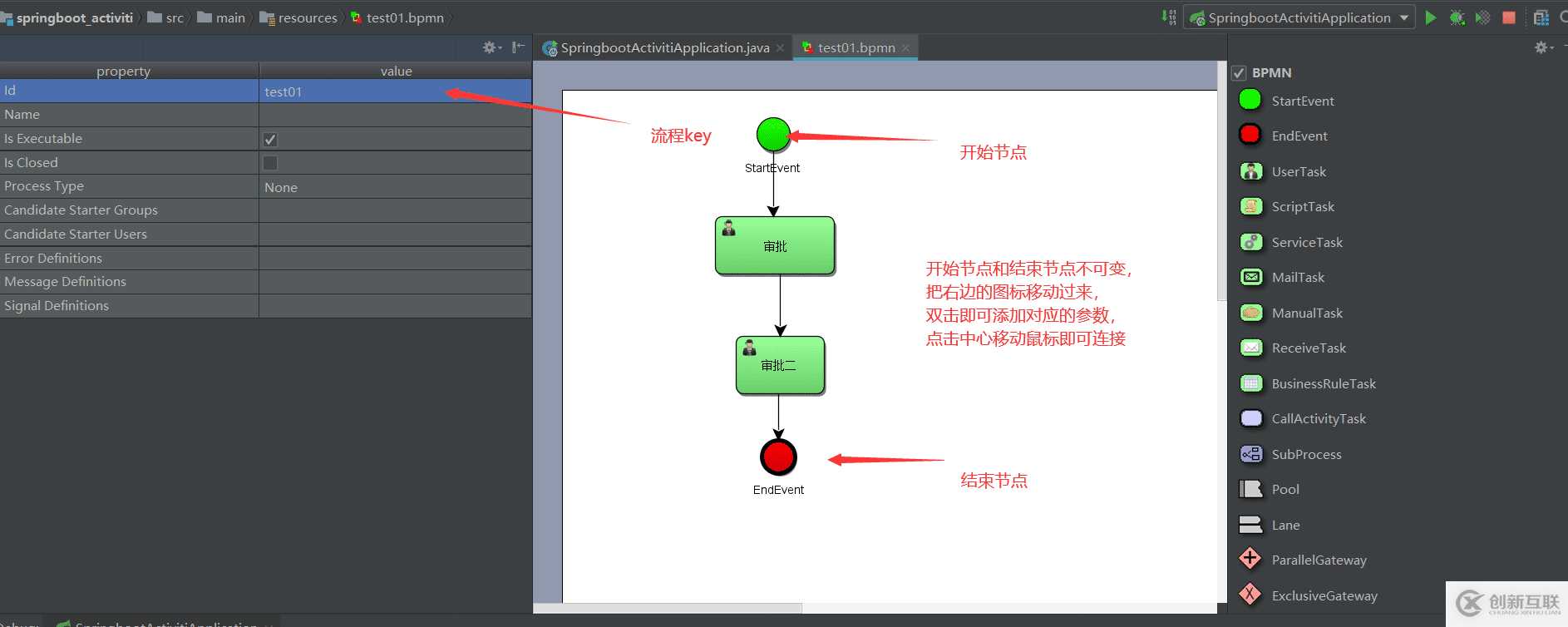

2.安裝好bpmn插件后開始新建bpmn文件，也就是畫流程圖

Springboot集成activity的用法

Springboot集成activity的用法

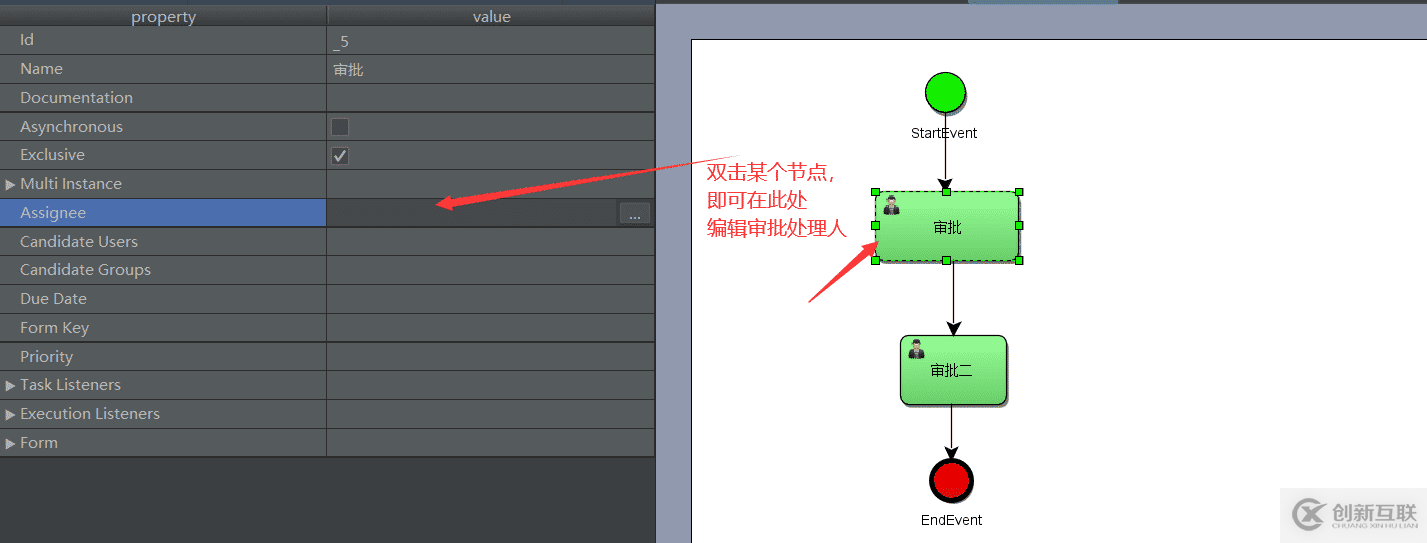

一般是在代碼中進行指定流程審批人的，我這里只做入門案例

3.添加pom依賴

這里包含了在線設計流程圖的相關依賴，在下一篇會寫出來，項目中一般都是在前端在線設計；所以直接放上去也沒事

<&#63;xml version="1.0" encoding="UTF-8"&#63;>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.2.0.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>
  <groupId>com</groupId>
  <artifactId>springboot_activiti</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <name>springboot_activiti</name>
  <description>Demo project for Spring Boot</description>



  <properties>
    <springboot.version>2.2.0.RELEASE</springboot.version>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
    <activiti.version>6.0.0</activiti.version>
  </properties>

  <dependencies>


    <dependency>
      <groupId>org.activiti</groupId>
      <artifactId>activiti-engine</artifactId>
      <version>${activiti.version}</version>
    </dependency>

    <dependency>
      <groupId>org.activiti</groupId>
      <artifactId>activiti-spring</artifactId>
      <version>${activiti.version}</version>
      <exclusions>
        <exclusion>
          <groupId>org.codehaus.jackson</groupId>
          <artifactId>jackson-core-asl</artifactId>
        </exclusion>
        <exclusion>
          <groupId>org.slf4j</groupId>
          <artifactId>slf4j-log4j12</artifactId>
        </exclusion>
        <exclusion>
          <artifactId>spring-context</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-jdbc</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-tx</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-orm</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-beans</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>mybatis</artifactId>
          <groupId>org.mybatis</groupId>
        </exclusion>
        <exclusion>
          <artifactId>activation</artifactId>
          <groupId>javax.activation</groupId>
        </exclusion>
      </exclusions>

    </dependency>

    <dependency>
      <groupId>org.activiti</groupId>
      <artifactId>activiti-spring-boot-starter-basic</artifactId>
      <version>${activiti.version}</version>
    </dependency>

    <!-- Activiti 流程圖 -->
    <dependency>
      <groupId>org.activiti</groupId>
      <artifactId>activiti-common-rest</artifactId>
      <version>${activiti.version}</version>
    </dependency>
    <!-- Activiti 在線設計 -->
    <dependency>
      <groupId>org.activiti</groupId>
      <artifactId>activiti-modeler</artifactId>
      <version>5.22.0</version>
      <exclusions>
        <exclusion>
          <artifactId>spring-beans</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-context</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-core</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-tx</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-web</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-security-config</artifactId>
          <groupId>org.springframework.security</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-security-core</artifactId>
          <groupId>org.springframework.security</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-security-crypto</artifactId>
          <groupId>org.springframework.security</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-security-web</artifactId>
          <groupId>org.springframework.security</groupId>
        </exclusion>
        <exclusion>
          <artifactId>spring-webmvc</artifactId>
          <groupId>org.springframework</groupId>
        </exclusion>
        <exclusion>
          <artifactId>activation</artifactId>
          <groupId>javax.activation</groupId>
        </exclusion>
        <exclusion>
          <artifactId>commons-io</artifactId>
          <groupId>commons-io</groupId>
        </exclusion>
      </exclusions>
    </dependency>




    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-autoconfigure</artifactId>
      <version>${springboot.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-tomcat</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-thymeleaf</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>


    <dependency>
      <groupId>commons-io</groupId>
      <artifactId>commons-io</artifactId>
      <version>2.3</version>
    </dependency>

    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>2.10.0</version>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <scope>runtime</scope>
    </dependency>

    <dependency>
      <groupId>org.junit.jupiter</groupId>
      <artifactId>junit-jupiter-api</artifactId>
      <version>RELEASE</version>
      <scope>compile</scope>
    </dependency>


  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>

      <plugin>
        <groupId>org.apache.tomcat.maven</groupId>
        <artifactId>tomcat7-maven-plugin</artifactId>
        <configuration>
          <port>8081</port>
          <path>/activity</path>
          <systemProperties>
            <com.sun.management.jmxremote.port>4000</com.sun.management.jmxremote.port>
          </systemProperties>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>
