Sysbench和TPCC-MySQL一樣,也是一款基準測試的工具。

TPCC-MySQL
http://blog.itpub.net/29254281/viewspace-1195589/

相對于TPCC-MySQL,Sysbench不僅可以對MySQL，也可以對Oracle,PostgreSQL進行基準測試。

源碼下載地址:
https://launchpad.net/sysbench

先下載依賴包
yum install automake autoconf -y

運行./configure && make 命令,可能有以下的報錯
../libtool: line 5172: : command not found
修改configure.ac文件


將LIBTOOL注釋,并增加AC_PROG_RANLIB


修改之后運行如下命令
./autogen.sh && ./configure && make
完成之后，進入sysbench文件夾,可以看到sysbench命令已經編譯完成。

1.進行文件IO測試

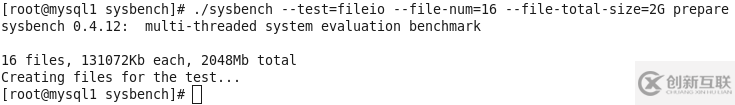

準備文件

進行基準測試

1. [root@mysql1 sysbench]# ./sysbench --test=fileio --file-total-size=2G --file-test-mode=rndrw --file-num=16 --num-threads=16 run

2. sysbench 0.4.12:  multi-threaded system evaluation benchmark

4. Running the test with following options:

5. Number of threads: 16

7. Extra file open flags: 0

8. 16 files, 128Mb each

9. 2Gb total file size

10. Block size 16Kb

11. Number of random requests for random IO: 10000

12. Read/Write ratio for combined random IO test: 1.50

13. Periodic FSYNC enabled, calling fsync() each 100 requests.

14. Calling fsync() at the end of test, Enabled.

15. Using synchronous I/O mode

16. Doing random r/w test

17. Threads started!

18. Done.

20. Operations performed:  6006 Read, 3996 Write, 1600 Other = 11602 Total

21. Read 93.844Mb  Written 62.438Mb  Total transferred 156.28Mb  (2.1231Mb/sec)

22. 135.88 Requests/sec executed

24. Test execution summary:

25. total time:                          73.6086s

26. total number of events:              10002

27. total time taken by event execution: 602.0152

28. per-request statistics:

29. min:                                  0.01ms

30. avg:                                 60.19ms

31. max:                               1587.11ms

32. approx.  95 percentile:             290.98ms

34. Threads fairness:

35. events (avg/stddev):           625.1250/42.01

36. execution time (avg/stddev):   37.6259/2.94

其中主要參數和默認值
  --file-num=N                     創建測試的文件數量 [128]
  --file-block-size=N             塊的尺寸,默認是16K 用于測試Oracle一般改為8K[16384]
  --file-total-size=SIZE         所有測試文件總的大小[2G]
  --file-test-mode=STRING   測試模式 seqwr(順序寫), seqrewr(順序讀寫), seqrd(順序讀), rndrd(隨機讀), rndwr(隨機寫), rndrw(隨機讀寫)
  --file-io-mode=STRING      文件操作模式 sync(同步),async(異步),fastmmap,slowmmap(兩種內存映射模式) [sync]
  --file-rw-ratio=N                測試時的讀寫比例  [1.5]

  --file-async-backlog=N        number of asynchronous operatons to queue per thread [128]
  --file-extra-flags=STRING     additional flags to use on opening files {sync,dsync,direct} []
  --file-fsync-freq=N           do fsync() after this number of requests (0 - don't use fsync()) [100]
  --file-fsync-all=[on|off]     do fsync() after each write operation [off]
  --file-fsync-end=[on|off]     do fsync() at the end of test [on]
  --file-fsync-mode=STRING      which method to use for synchronization {fsync, fdatasync} [fsync]
  --file-merged-requests=N      merge at most this number of IO requests if possible (0 - don't merge) [0]

測試完成之后清理生成的文件
[root@mysql1 sysbench]# ./sysbench --test=fileio --file-num=16 --file-total-size=2G cleanup
sysbench 0.4.12:  multi-threaded system evaluation benchmark
Removing test files...

如果出現如下錯誤,則需要注意 指定的file-num能夠被file-total-size 整除
FATAL: Too large position discovered in request!

2.進行CPU基準測試
[root@mysql1 sysbench]# ./sysbench --test=cpu --num-threads=16 run
sysbench 0.4.12:  multi-threaded system evaluation benchmark
Running the test with following options:
Number of threads: 16
Doing CPU performance benchmark
Threads started!
Done.
Maximum prime number checked in CPU test: 10000
Test execution summary:
    total time:                          2.5106s
    total number of events:              10000
    total time taken by event execution: 39.3201
    per-request statistics:
         min:                                  0.30ms
         avg:                                  3.93ms
         max:                                 43.80ms
         approx.  95 percentile:              15.07ms

Threads fairness:
    events (avg/stddev):           625.0000/50.60
    execution time (avg/stddev):   2.4575/0.03

3.OLTP基準測試
進行準備
[root@mysql1 sysbench]# ./sysbench --test=oltp --mysql-table-engine=innodb --oltp-table-size=1000000 --mysql-host=127.0.0.1 --mysql-user=xx --mysql-password=xx --mysql-socket=/home/lihuilin/mysql-5.6.14/mysql.sock  --num-threads=15  prepare
sysbench 0.4.12:  multi-threaded system evaluation benchmark

No DB drivers specified, using mysql
Creating table 'sbtest'...
Creating 1000000 records in table 'sbtest'...

然后進行測試
[root@mysql1 sysbench]# ./sysbench --test=oltp --mysql-table-engine=innodb --oltp-table-size=1000000 --mysql-host=127.0.0.1 --mysql-user=xx --mysql-password=xx --mysql-socket=/home/lihuilin/mysql-5.6.14/mysql.sock  --num-threads=15  run
sysbench 0.4.12:  multi-threaded system evaluation benchmark

No DB drivers specified, using mysql
Running the test with following options:
Number of threads: 15

Doing OLTP test.
Running mixed OLTP test
Using Special distribution (12 iterations,  1 pct of values are returned in 75 pct cases)
Using "BEGIN" for starting transactions
Using auto_inc on the id column
Maximum number of requests for OLTP test is limited to 10000
Threads started!
Done.

OLTP test statistics:
    queries performed:
        read:                            140000
        write:                           50000
        other:                           20000
        total:                           210000
    transactions:                        10000  (502.61 per sec.)
    deadlocks:                           0      (0.00 per sec.)
    read/write requests:                 190000 (9549.53 per sec.)
    other operations:                    20000  (1005.21 per sec.)

Test execution summary:
    total time:                          19.8963s
    total number of events:              10000
    total time taken by event execution: 298.1265
    per-request statistics:
         min:                                 11.62ms
         avg:                                 29.81ms
         max:                                185.70ms
         approx.  95 percentile:              42.60ms

Threads fairness:
    events (avg/stddev):           666.6667/5.69
    execution time (avg/stddev):   19.8751/0.01

相對于TPCC-MySQL，sysbench的測試結果非常直觀, 一目了然
