如何使用storageclass實現動態pv？針對這個問題，今天小編總結這篇有關storageclass實踐的文章，希望幫助更多想解決這個問題的同學找到更加簡單易行的辦法。

創新互聯是專業的滑縣網站建設公司，滑縣接單;提供網站設計制作、成都網站建設,網頁設計,網站設計,建網站,PHP網站建設等專業做網站服務;采用PHP框架,可快速的進行滑縣網站開發網頁制作和功能擴展;專業做搜索引擎喜愛的網站,專業的做網站團隊,希望更多企業前來合作!

在部署nfs-client-provisioner前，我們需要先準備好nfs存儲服務器并在所有node節點上安裝

nfs服務器：192.168.248.139

共享存儲目錄：/data/nfs

nfs-client-provisioner部署文件

vim nfs-client-provisioner.yamlapiVersion: apps/v1 kind: Deployment metadata:   name: nfs-client-provisioner   namespace: default spec:   replicas: 1   selector:     matchLabels:       app: nfs-client-provisioner   strategy:     type: Recreate   template:     metadata:       labels:         app: nfs-client-provisioner     spec:       serviceAccountName: nfs-client-provisioner       containers:       - name: nfs-client-provisioner         image: quay.azk8s.cn/external_storage/nfs-client-provisioner:latest         volumeMounts:         - name: timezone           mountPath: /etc/localtime         - name: nfs-client-root           mountPath: /persistentvolumes         env:         - name: PROVISIONER_NAME           value: fuseim.pri/ifs         - name: NFS_SERVER           value: 192.168.248.139         - name: NFS_PATH           value: /data/nfs       volumes:       - name: timezone         hostPath:           path: /usr/share/zoneinfo/Asia/Shanghai       - name: nfs-client-root         nfs:           server: 192.168.248.139           path: /data/nfs

Storageclass部署文件

vim nfs-client-class.yamlapiVersion: storage.k8s.io/v1 kind: StorageClass metadata:   name: managed-nfs-storage   annotations:     storageclass.kubernetes.io/is-default-class: "true"   #設置其為默認存儲后端 provisioner: fuseim.pri/ifs   #or choose another name, must match deployment's env PROVISIONER_NAME' parameters:   archiveOnDelete: "false"   #刪除pvc后，后端存儲上的pv也自動刪除

rbac授權文件

vim nfs-client-rbac.yamlkind: ServiceAccount apiVersion: v1 metadata:   name: nfs-client-provisioner --- kind: ClusterRole apiVersion: rbac.authorization.k8s.io/v1 metadata:   name: nfs-client-provisioner-runner rules: - apiGroups: [""]   resources: ["persistentvolumes"]   verbs: ["get", "list", "watch", "create", "delete"] - apiGroups: [""]   resources: ["persistentvolumeclaims"]   verbs: ["get", "list", "watch", "update"] - apiGroups: ["storage.k8s.io"]   resources: ["storageclasses"]   verbs: ["get", "list", "watch"] - apiGroups: [""]   resources: ["events"]   verbs: ["create", "update", "patch"] --- kind: ClusterRoleBinding apiVersion: rbac.authorization.k8s.io/v1 metadata:   name: run-nfs-client-provisioner subjects: - kind: ServiceAccount   name: nfs-client-provisioner   namespace: default roleRef:   kind: ClusterRole   name: nfs-client-provisioner-runner   apiGroup: rbac.authorization.k8s.io --- kind: Role apiVersion: rbac.authorization.k8s.io/v1 metadata:   name: leader-locking-nfs-client-provisioner rules: - apiGroups: [""]   resources: ["endpoints"]   verbs: ["get", "list", "watch", "create", "update", "patch"] --- kind: RoleBinding apiVersion: rbac.authorization.k8s.io/v1 metadata:   name: leader-locking-nfs-client-provisioner subjects: - kind: ServiceAccount   name: nfs-client-provisioner   namespace: default roleRef:   kind: Role   name: leader-locking-nfs-client-provisioner   apiGroup: rbac.authorization.k8s.io

準備好以上三個文件后，使用kubectl apply命令應用即可完成nfs-client-provisioner的部署。

[root@k8s-master-01 Dynamic-pv]# kubectl apply -f . storageclass.storage.k8s.io/managed-nfs-storage created deployment.apps/nfs-client-provisioner created serviceaccount/nfs-client-provisioner created clusterrole.rbac.authorization.k8s.io/nfs-client-provisioner-runner created clusterrolebinding.rbac.authorization.k8s.io/run-nfs-client-provisioner created role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created

查看pod運行狀態和sc

[root@k8s-master-01 Dynamic-pv]# kubectl get pod,sc NAME                                        READY   STATUS    RESTARTS   AGE pod/nfs-client-provisioner-c676947d-pfpms   1/1     Running   0          107s NAME                                                        PROVISIONER      AGE storageclass.storage.k8s.io/managed-nfs-storage (default)   fuseim.pri/ifs   108s

可以看到nfs-client-provisioner已經正常運行，sc已經創建成功。接下來我們測試創建幾個pvc

vim mysql-pvc.yamlapiVersion: v1 kind: PersistentVolumeClaim metadata:   name: mysql-01-pvc #  annotations: #    volume.beta.kubernetes.io/storage-class: "managed-nfs-storage" spec:   accessModes: ["ReadWriteMany"]   resources:     requests:       storage: 10Gi --- apiVersion: v1 kind: PersistentVolumeClaim metadata:   name: mysql-02-pvc spec:   accessModes: ["ReadWriteMany"]   resources:     requests:       storage: 5Gi --- apiVersion: v1 kind: PersistentVolumeClaim metadata:   name: mysql-03-pvc spec:   accessModes: ["ReadWriteMany"]   resources:     requests:       storage: 3Gi[root@k8s-master-01 Dynamic-pv]# kubectl apply -f mysql-pvc.yaml  persistentvolumeclaim/mysql-01-pvc created persistentvolumeclaim/mysql-02-pvc created persistentvolumeclaim/mysql-03-pvc created [root@k8s-master-01 Dynamic-pv]# kubectl get pvc,pv NAME                                 STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS          AGE persistentvolumeclaim/mysql-01-pvc   Bound    pvc-eef853e1-f8d8-4ab9-bfd3-05c2a58fd9dc   10Gi       RWX            managed-nfs-storage   2m54s persistentvolumeclaim/mysql-02-pvc   Bound    pvc-fc0b8228-81c0-4d91-83b0-6bb20ab37cc3   5Gi        RWX            managed-nfs-storage   2m54s persistentvolumeclaim/mysql-03-pvc   Bound    pvc-c6739d7d-4930-49bd-975f-04bffc05dfd6   3Gi        RWX            managed-nfs-storage   2m54s NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                  STORAGECLASS          REASON   AGE persistentvolume/pvc-c6739d7d-4930-49bd-975f-04bffc05dfd6   3Gi        RWX            Delete           Bound    default/mysql-03-pvc   managed-nfs-storage            2m54s persistentvolume/pvc-eef853e1-f8d8-4ab9-bfd3-05c2a58fd9dc   10Gi       RWX            Delete           Bound    default/mysql-01-pvc   managed-nfs-storage            2m54s persistentvolume/pvc-fc0b8228-81c0-4d91-83b0-6bb20ab37cc3   5Gi        RWX            Delete           Bound    default/mysql-02-pvc   managed-nfs-storage            2m54s

可以看到pvc已經創建成功，并自動創建了一個關聯的pv資源對象。我們?cè)俨榭春蠖舜鎯?chǔ)目錄里面是否生成了對應命名格式的pv

[root@localhost nfs]# pwd /data/nfs [root@localhost nfs]# ll total 12 drwxrwxrwx 2 root root 4096 Feb 20 10:05 default-mysql-01-pvc-pvc-eef853e1-f8d8-4ab9-bfd3-05c2a58fd9dc drwxrwxrwx 2 root root 4096 Feb 20 10:05 default-mysql-02-pvc-pvc-fc0b8228-81c0-4d91-83b0-6bb20ab37cc3 drwxrwxrwx 2 root root 4096 Feb 20 10:05 default-mysql-03-pvc-pvc-c6739d7d-4930-49bd-975f-04bffc05dfd6

可以看到下面有名字很長的文件夾，這個文件夾的命名方式是不是和我們上面的規則：${namespace}-${pvcName}-${pvName}是一樣的，結果符合我們的預期。

接下來我們部署一個mysql應用，測試下 StorageClass 方式聲明的 PVC 對象

cat mysql-config.yaml apiVersion: v1 kind: ConfigMap metadata:   name: mysql-config data:   custom.cnf: |     [mysqld]     default_storage_engine=innodb     skip_external_locking     skip_host_cache     skip_name_resolve     default_authentication_plugin=mysql_native_passwordcat mysql-secret.yaml apiVersion: v1 kind: Secret metadata:   name: mysql-user-pwd data:   mysql-root-pwd: cGFzc3dvcmQ=cat mysql-deploy.yaml apiVersion: v1 kind: Service metadata:   name: mysql spec:   type: NodePort   ports:   - port: 3306     nodePort: 30006     protocol: TCP     targetPort: 3306    selector:     app: mysql --- apiVersion: apps/v1 kind: Deployment metadata:   name: mysql spec:   replicas: 1   selector:     matchLabels:       app: mysql   strategy:     type: Recreate   template:     metadata:       labels:         app: mysql     spec:       containers:       - image: mysql         name: mysql         imagePullPolicy: IfNotPresent         env:         - name: MYSQL_ROOT_PASSWORD           valueFrom:             secretKeyRef:               name: mysql-user-pwd               key: mysql-root-pwd         ports:         - containerPort: 3306           name: mysql         volumeMounts:         - name: mysql-config           mountPath: /etc/mysql/conf.d/         - name: mysql-persistent-storage           mountPath: /var/lib/mysql         - name: timezone           mountPath: /etc/localtime       volumes:       - name: mysql-config         configMap:           name: mysql-config       - name: timezone         hostPath:           path: /usr/share/zoneinfo/Asia/Shanghai       - name: mysql-persistent-storage         persistentVolumeClaim:           claimName: mysql-01-pvc[root@k8s-master-01 yaml]# kubectl apply -f . configmap/mysql-config created service/mysql created deployment.apps/mysql created secret/mysql-user-pwd created [root@k8s-master-01 yaml]# kubectl get pod,svc NAME                                        READY   STATUS    RESTARTS   AGE pod/mysql-7c5b5df54c-vrnr8                  1/1     Running   0          83s pod/nfs-client-provisioner-c676947d-pfpms   1/1     Running   0          30m NAME                 TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)          AGE service/kubernetes   ClusterIP   10.0.0.1     <none>        443/TCP          93d service/mysql        NodePort    10.0.0.19    <none>        3306:30006/TCP   83s

可以看到mysql應用已經正常運行，我們通過任意一個node節點的ip和30006端口連接mysql數據庫測試

[root@localhost ~]# mysql -uroot -h292.168.248.134 -P30006 -p Enter password:  Welcome to the MariaDB monitor.  Commands end with ; or \g. Your MySQL connection id is 10 Server version: 8.0.19 MySQL Community Server - GPL Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MySQL [(none)]> show databases; +--------------------+ | Database           | +--------------------+ | information_schema | | mysql              | | performance_schema | | sys                | +--------------------+ 4 rows in set (0.01 sec) MySQL [(none)]>

可以看到mysql數據庫連接正常。此時查看nfs存儲，mysql數據庫數據已經持久化到nfs服務器/data/nfs/default-mysql-01-pvc-pvc-eef853e1-f8d8-4ab9-bfd3-05c2a58fd9dc目錄中

[root@localhost nfs]# du -sh * 177M    default-mysql-01-pvc-pvc-eef853e1-f8d8-4ab9-bfd3-05c2a58fd9dc 4.0K    default-mysql-02-pvc-pvc-fc0b8228-81c0-4d91-83b0-6bb20ab37cc3 4.0K    default-mysql-03-pvc-pvc-c6739d7d-4930-49bd-975f-04bffc05dfd6 [root@localhost nfs]# cd default-mysql-01-pvc-pvc-eef853e1-f8d8-4ab9-bfd3-05c2a58fd9dc/ [root@localhost default-mysql-01-pvc-pvc-eef853e1-f8d8-4ab9-bfd3-05c2a58fd9dc]# ls auto.cnf       binlog.index  client-cert.pem  ibdata1      ibtmp1        mysql.ibd           public_key.pem   sys binlog.000001  ca-key.pem    client-key.pem   ib_logfile0  #innodb_temp  performance_schema  server-cert.pem  undo_001 binlog.000002  ca.pem        ib_buffer_pool   ib_logfile1  mysql         private_key.pem     server-key.pem   undo_002

另外我們可以看到我們這里是手動創建的一個 PVC 對象，在實際工作中，使用 StorageClass 更多的是 StatefulSet 類型的服務，StatefulSet 類型的服務我們也可以通過一個 volumeClaimTemplates 屬性來直接使用 StorageClass，如下

vim web.yamlapiVersion: v1 kind: Service metadata:   name: nginx   labels:     app: nginx spec:   ports:   - port: 80     name: web   clusterIP: None   selector:     app: nginx --- apiVersion: apps/v1 kind: StatefulSet metadata:   name: web spec:   serviceName: "nginx"   replicas: 8   selector:     matchLabels:       app: nginx   template:     metadata:       labels:         app: nginx     spec:       containers:       - name: nginx         image: nginx         imagePullPolicy: IfNotPresent         ports:         - containerPort: 80           name: web         volumeMounts:         - name: www           mountPath: /usr/share/nginx/html   volumeClaimTemplates:   - metadata:       name: www     spec:       accessModes: [ "ReadWriteOnce" ]       resources:         requests:           storage: 10Gi

直接創建上面的對象

[root@k8s-master-01 Dynamic-pv]# kubectl apply -f web.yaml  service/nginx created statefulset.apps/web created [root@k8s-master-01 Dynamic-pv]# kubectl get pod -o wide NAME                                    READY   STATUS    RESTARTS   AGE   IP             NODE          NOMINATED NODE   READINESS GATES nfs-client-provisioner-c676947d-wzwhh   1/1     Running   0          41m   10.244.0.176   k8s-node-01   <none>           <none> web-0                                   1/1     Running   0          32s   10.244.1.167   k8s-node-02   <none>           <none> web-1                                   1/1     Running   0          31s   10.244.0.188   k8s-node-01   <none>           <none> web-2                                   1/1     Running   0          29s   10.244.1.168   k8s-node-02   <none>           <none> web-3                                   1/1     Running   0          27s   10.244.0.189   k8s-node-01   <none>           <none> web-4                                   1/1     Running   0          24s   10.244.1.169   k8s-node-02   <none>           <none> web-5                                   1/1     Running   0          22s   10.244.0.190   k8s-node-01   <none>           <none> web-6                                   1/1     Running   0          21s   10.244.1.170   k8s-node-02   <none>           <none> web-7                                   1/1     Running   0          19s   10.244.0.191   k8s-node-01   <none>           <none>

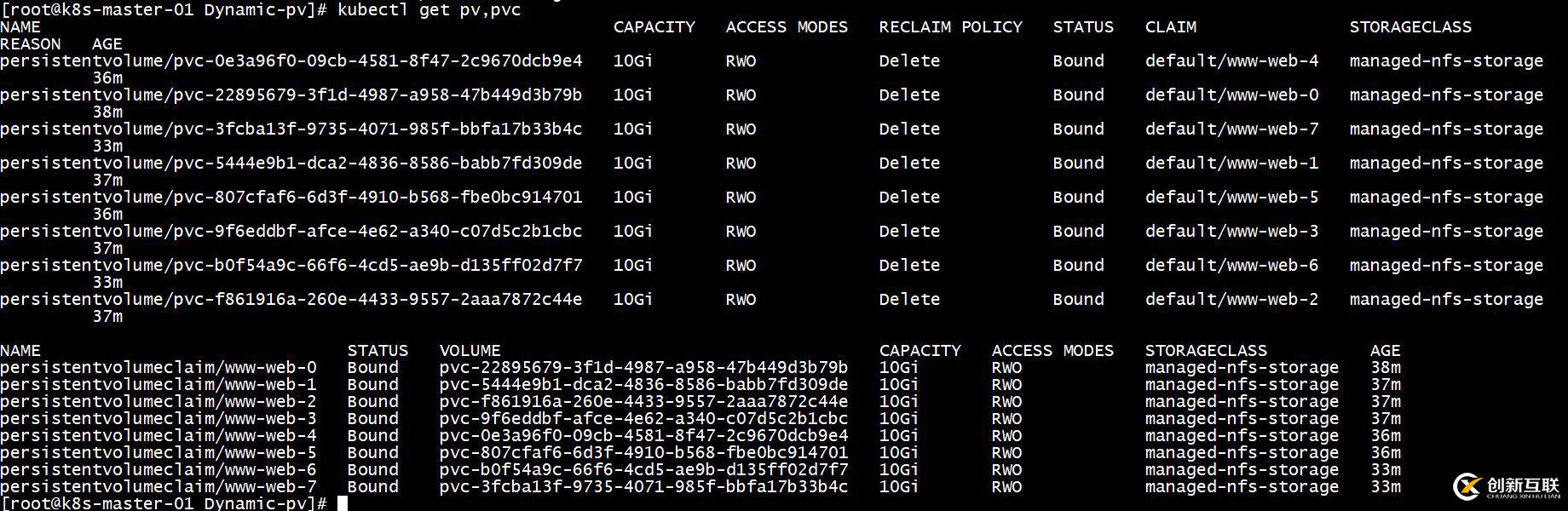

查看存儲上的數據目錄

可以看出可以自動動態的分配nfs存儲卷。以上即為k8s持久化存儲之storageclass實踐。

以上就是使用storageclass實現動態pv的具體步驟，內容較為全面，而且我也相信有相當?shù)囊恍┕ぞ呖赡苁俏覀內粘９ぷ骺赡軙?huì)見到或用到的。通過這篇文章，希望你能收獲更多。
